Easy to install and service

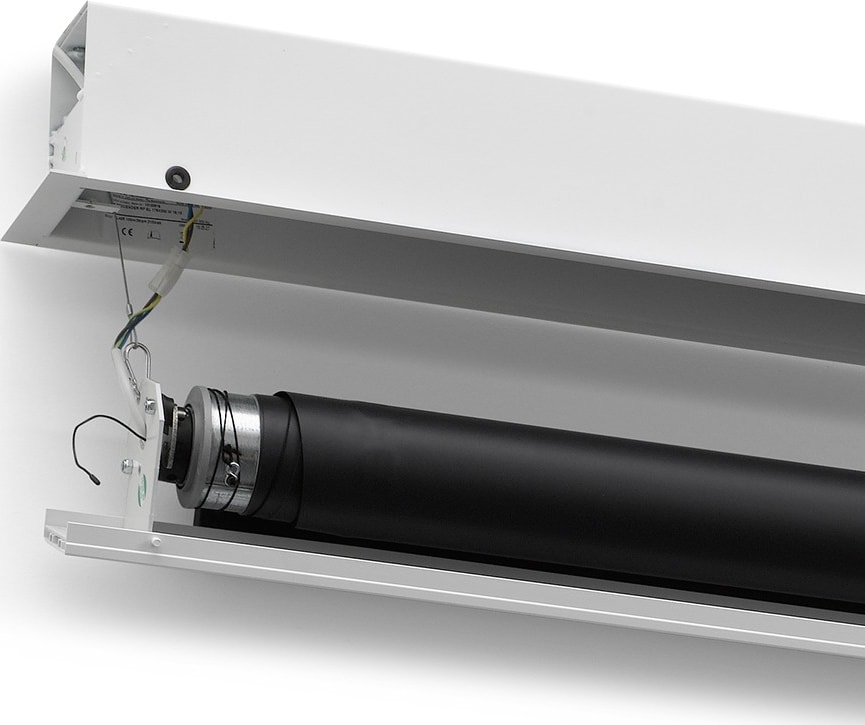

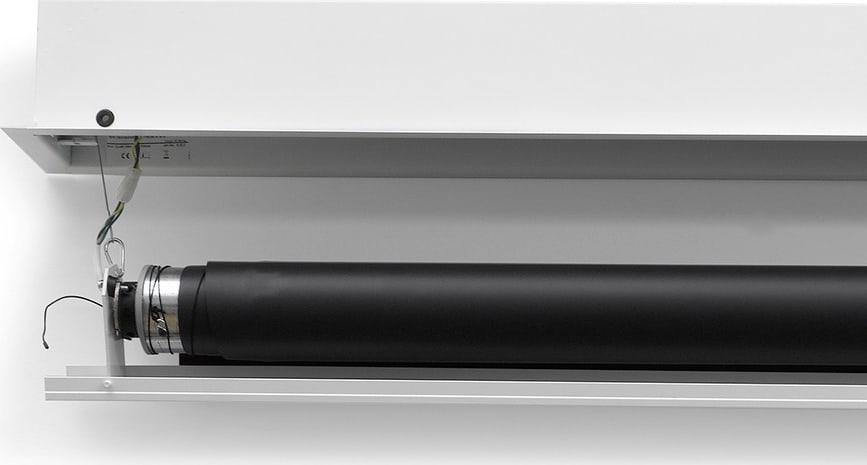

Easy Serviceability : Accessing a projection screen to make adjustments and complete maintenance has been made installer friendly by Projecta. The motor and screen surface remain accessible even when the projection screen is installed in a ceiling. The bottom panel can be lowered and remains connected to the casing by two steel cables.

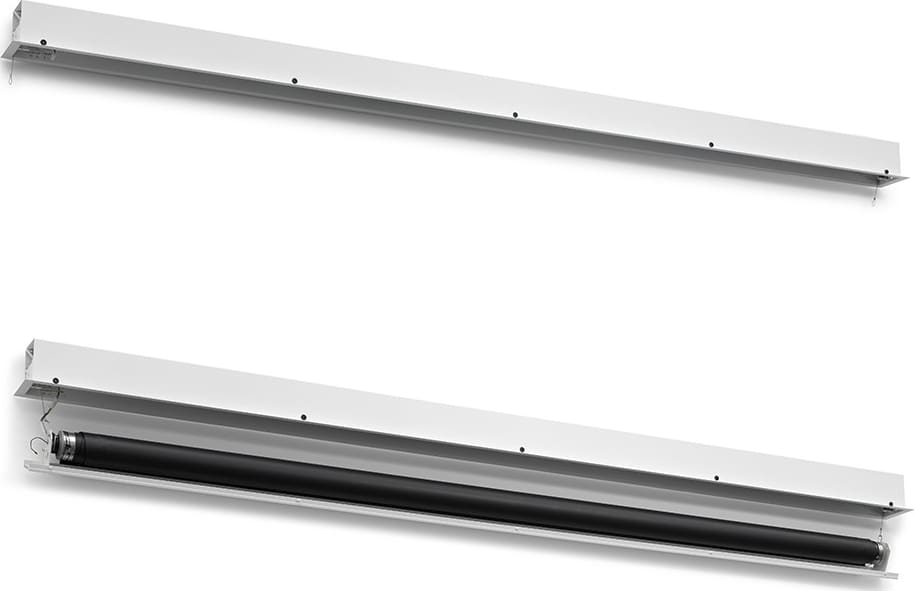

2-Step installation : With the unique Projecta 2-step installation you can install the screen case separate from the screen surface. Install the screen case during the rough-in stages and the Screen Surface Assembly at any later stage to prevent damage. The Screen Surface Assembly includes the bottom panel of the screen, motor and screen surface.
Tab-Tensioned :The tab-tensioning system will keep the projection surface under a constant tensioning for a perfectly flat viewing area. A flat projection surface will get the most out of your projector, making sure no pixels get lost or deformed. If detail is important a perfectly flat projection area is vital.
HD Progressive Screen Material: Colour fidelity, image uniformity, pixel preservation – The best surface for HD and 4K UHD projection
When you look closely at a projection screen surface, many surfaces look like varying grains of sandpaper and others
have microscopic variations on the surface. This causes pixel loss and “noise” in the image because the surface
isn’t able to perfectly reflect the projected image. As projection resolution advances, pixel preservation becomes
much more important to preserve the clarity of your image.
The chemistry behind a HD Progressive surface is formulated to create a surface free of microscopic variances allowing
the screen to essentially disappear. The result is brilliant light, vibrant color and the best surface for HD, 4K and
Ultra HD projection.
Color Fidelity – We hold ourselves to the highest standard when it comes to color fidelity.
All of our surfaces are individually tested and color measured to ensure
each surface will preserve the true color of the projector.
Image Uniformity – It is imperative that the surface reflects light in a manner that maintains
Ceiling recessed electrically operated projection screen 230 volt (50Hz) with a usage of no more than 0.43 Ampere (98.9 Watt).
The motor is mounted on the left side in the steel casing with rubber dampers to reduce sound.
The motor is mounted inside the roller, 4 wire, 26 rotations per minute, maintenance free, integrated brake and
the uniformity of the image being projected.
Pixel Preservation – The clarity of an image is in the microscopic details.
Our vinyl technology ensures a premium surface,
free of microscopic dips or grooves, so that every pixel is preserved.
thermal overload cut-out.
The 4 wire connection goes through the metal casing.
The casing is galvanised on the inside and on the outside powder coated with a matte structure coating (RAL 9016).
The roller with the projection surface is supplied fully mounted but can be removed on location for the projection of the projection
surface. After mounting the projection screen is reachable thought the bottom of the casing.
Install the screen case separate from the screen surface during the rough-in stages of construction.
The Screen Surface Assembly includes the bottom panel of the screen, motor and screen surface.

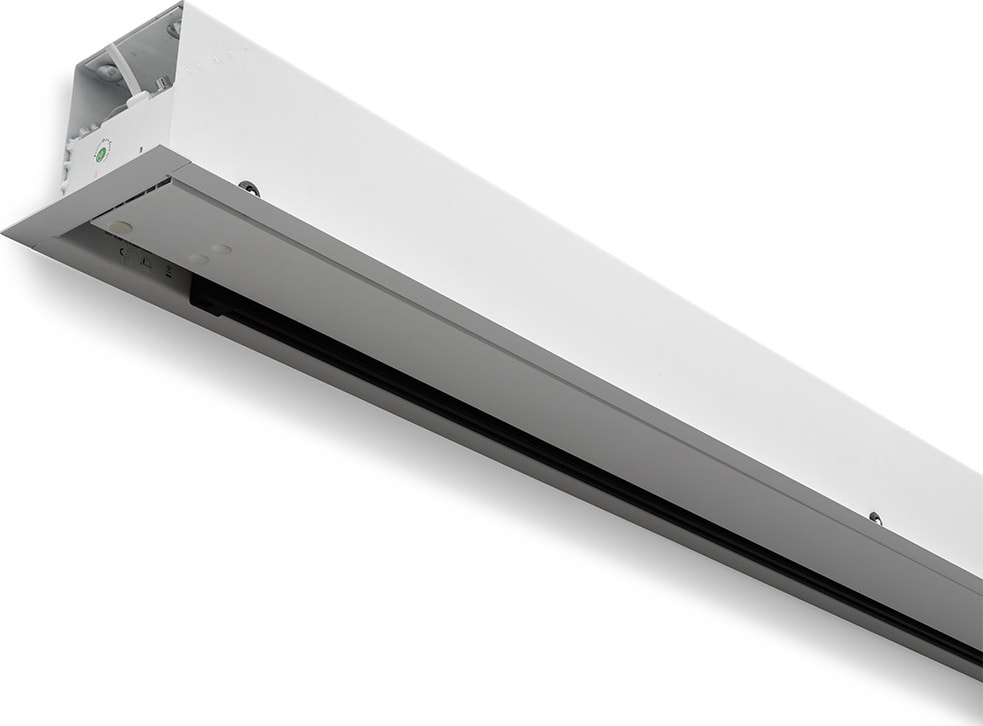

The triangular slat bar rolls into the case completely.
The screen fabrics are flame retardant and seamless in the viewing area.
Each side of the surface to have tab guide cable system to maintain even lateral tension and hold surface flat.
Custom slat bar with added weight maintains vertical tension on the screen surface. The ends of the slat to be protected by heavy
duty plastic caps enclosing a preset adjustable mechanism for screen tensioning.
The projection fabrics have a black backing.
Standard 3 position wall switch is supplied.
The projection screen is CE marked and satisfies the strictest quality and safety requirements.
