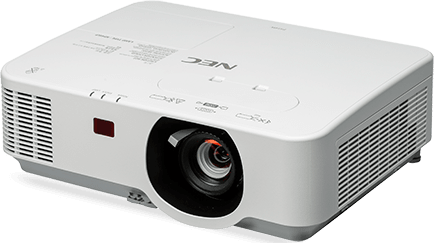

NEC P554U
SKU: p4823
This product is now discontinued. Check out the Epson EB-2250U as a suitable alternative
WUXGA resolution, 5300 lumens, and extensive connectivity options. Ideal for classrooms and boardrooms.
- 5300 Lumens Brightness (Lamp / LCD)
- WUXGA Resolution – 16:10 Aspect Ratio
- Projector warranty: 3 Years collect, repair and return
- Lamp warranty: 6 Months (4000 hours)
- 4.8 KG
- Volume discounts available
WishlistIn Wishlist Bundle Offers (Applied at Checkout)
Free 5m HDMI cable (18Gbps)
View Cable
£10 off any Projector Screen
View All Screens
£5 off any Mount
View All MountsQuick Links
Projectorpoint Opinion
The NEC P554U features WUXGA resolution (1920 x 1200 pixels / 16:10 aspect ratio) 5300 lumens and is particularly suited to large sized training or meeting rooms.
The NEC P554U is by far the most feature packed and versatile of projectors in this price bracket. Featuring a strong 1.6x optical zoom / 1.2-2.0:1 lens ratio, the P554U is immensely flexible in where it can be positioned in relation to the distance between projector and screen making it a great projector choice if replacing an old projector.
Extensive connectivity inputs including 1 x VGA, 2 x HDMI as well as a USB input for PC less presentations and HDBaseT for simplified installations with a single cable carrying video and audio signals. The RJ45 input allows you to connect the NEC P554U to your network and either display content to the projector (requires free NEC image express utility lite software download from NEC website to be installed on source computer/s) or monitor the projector for vital usage statistics, remotely control the projector or set up schedules for on/off periods.
Manufacturer Overview
The P Series is ideal for higher education classrooms, corporate boardrooms and rental where bright, sharp images are required. The NEC P554U includes advanced installation features such as horizontal & vertical lens shift and HDBaseT connectivity that provide greater installation flexibility. Adding horizontal & vertical keystone correction along with cornerstone and pincushion adjustment ensures the image will be square on the screen even if installation challanges exist. The long life lamp reduces maintenance and lowers total cost of ownership.
- Horizontal & Vertical lens shift enables flexible projector placement
- Powerful 20W speakers provide volume needed for large rooms
- Built-in HDBaseT enables simplified installations with a single cable for video and audio over long distances
- Dual HDMI inputs (with HDCP) ensures quick switching between presentations
- LAN connection for control and asset management over the network
- Optional wireless display with MultiPresenter Stick
- Variable audio-out allows the remote control to adjust speaker volume
- 15,000:1 Contrast Ratio creating extremely detailed images
- 8000-hour lamp (eco) drastically reduces maintenance, thereby decreasing the total cost of ownership
- Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for challenging installation applications in higher education and corporate
Technical Specifications
- Projector native resolution
- WUXGA (1920×1200)
- Screen size compatibility
- 762 – 7620 mm (30 – 300″)
- Projection distance
- 0.8 – 14.5 m
- Contrast ratio (typical)
- 20000:1
- Zoom ratio
- 1.6:1
- Zoom capability
- Yes
- Vertical synchronization (min)
- 0.05 kHz
- Vertical synchronization (max)
- 0.12 kHz
- Matrix size
- 1.63 cm (0.64″)
- Keystone correction, vertical
- -30 – 30°
- Keystone correction, horizontal
- -20 – 20°
- Horizontal synchronization (min)
- 15 kHz
- Horizontal synchronization (max)
- 100 kHz
- Projection technology
- LCD
- Projector brightness
- 5300 ANSI lumens
- Zoom type
- Manual
Lamps
- Lamps quantity
- 1 lamp(s)
- Lamp power
- 330 W
- Light source type
- Lamp
- Service life of light source
- 4000 h
- Service life of light source (economic mode)
- 8000 h
Lens system
- Focus
- Manual
- Focal length range
- 17.2 – 27.7 mm
- Aperture range (F-F)
- 1.5 – 2.08
- Horizontal lens shift range
- -15 – 15%
- Vertical lens shift range
- 0 – 55%
- Throw ratio
- 1.2 – 2.0:1
Video
- Analog signal format system
- NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
- Full HD
- Yes
- 3D
- No
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- Supported graphics resolutions
- 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
- Built-in speaker(s)
- Yes
- RMS rated power
- 20 W
Ports & interfaces
- HDMI connector type
- Full-size
- HDBaseT port
- Yes
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 2
HDMI ports quantity
- HDMI ports quantity
- 2
Ethernet LAN (RJ-45) ports
- Ethernet LAN (RJ-45) ports
- 1
USB 2.0 ports quantity
- USB 2.0 ports quantity
- 1
Composite video in
- Composite video in
- 1
Audio (L/R) in
- Audio (L/R) in
- 1
- Serial interface type
- RS-232
RS-232 ports
- RS-232 ports
- 1
- PC Audio out
- Yes
- PC Audio in
- Yes
- DVI port
- No
- AC (power) in
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100 Mbit/s
- Wi-Fi
- No
- Card reader integrated
- No
Sound emission
- Noise level
- 37 dB
- Noise level (economic mode)
- 34 dB
Technical details
- Product colour
- White
- HDCP
- Yes
Performance
- Mac compatibility
- Yes
Features
- Certification
- UL(UL60950-1, FCC 15 B, CUL(UL60950-1, CES-003 B)
Design
- Product type
- Standard throw projector
- Placement
- Desktop, Ceiling
Power
- AC input voltage
- 100 – 240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (typical)
- 457 W
- Power consumption (standby)
- 2 W
- Auto power off
- Yes
- Power consumption (economy mode)
- 286 W
Operational conditions
- Storage temperature (T-T)
- -10 – 50 °C
Weight & dimensions
- Weight
- 4.8 kg
- Width
- 420 mm
- Depth
- 329 mm
- Height
- 141 mm
Packaging content
- Remote control included
- Yes
- Manual
- Yes
- Cables included
- AC, VGA
- Batteries included
- Yes
Customer Reviews
Reviews
Need help or advice? Talk to experts!
Projection Calculator
Where can I position the projector?
To achieve an image with 382 cm diagonal size, place the projector anywhere between 449.49 to 945.59 cm from the screen.
