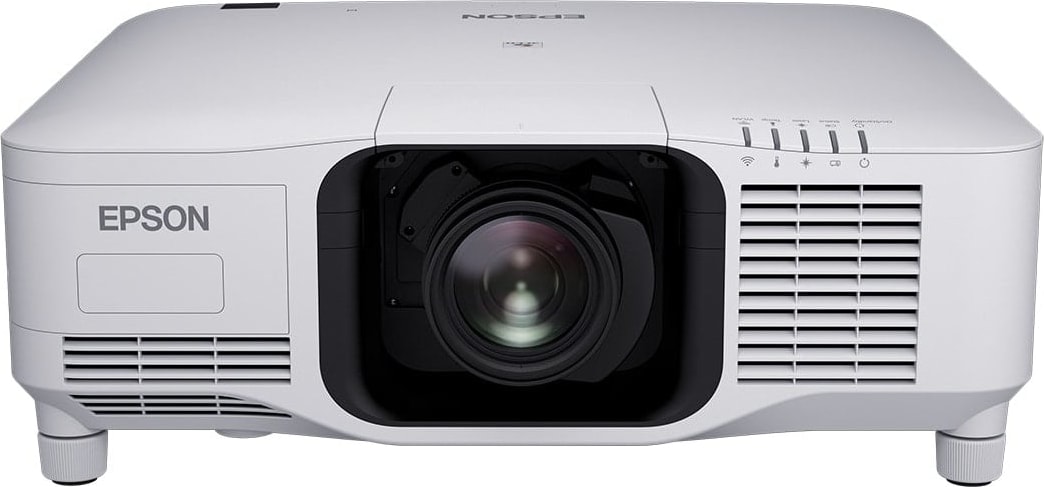

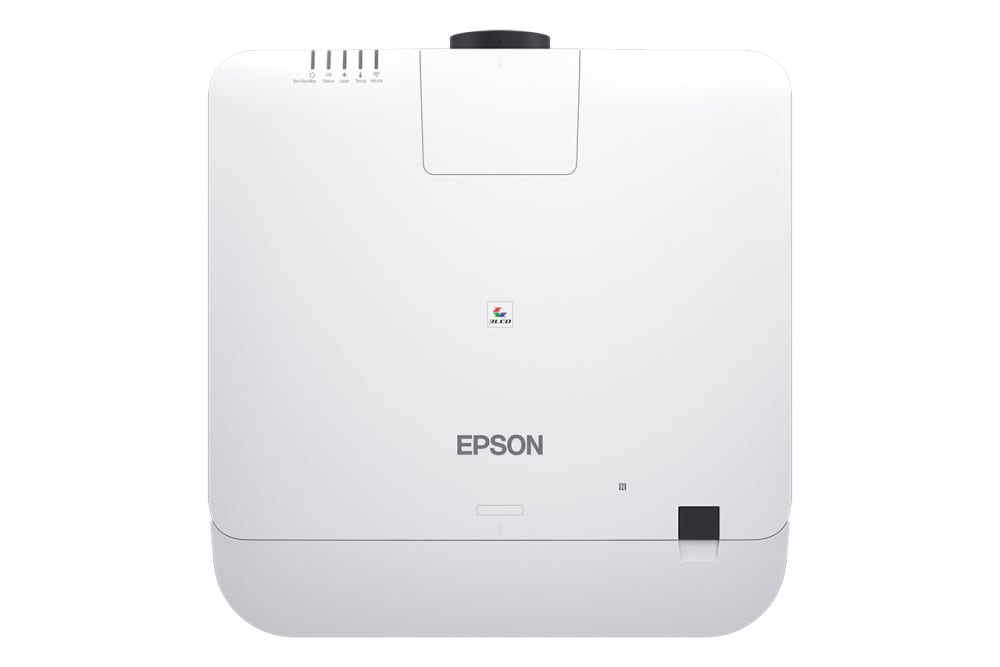

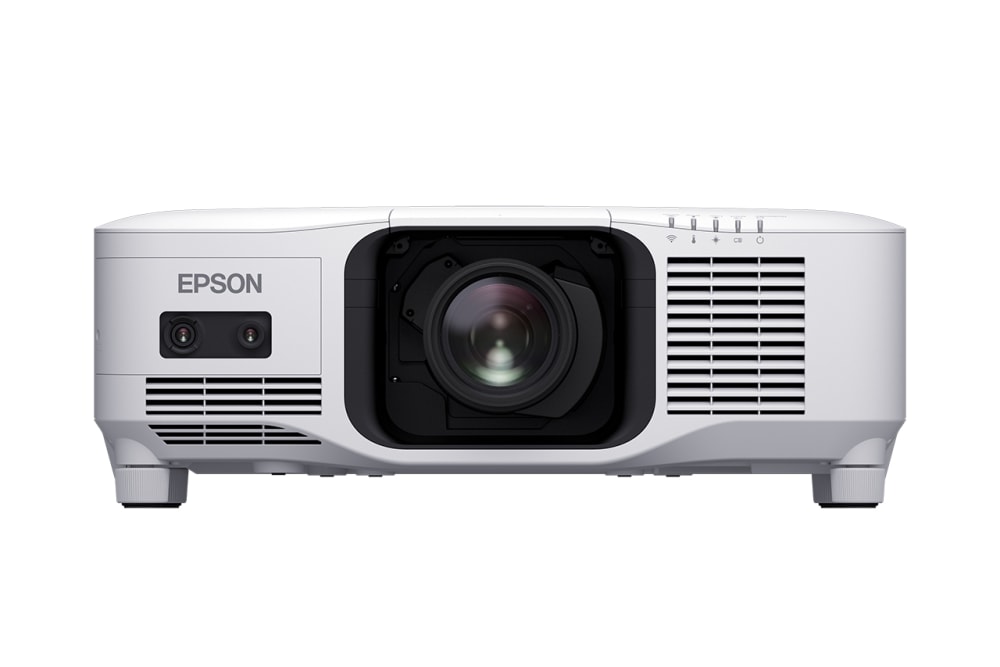

Epson EB-PU2120W

The Epson EB-PU2120W features a powerful 20,000 lumens, high definition WUXGA resolution (1920 x 1200 pixels , 16:10 aspect ratio) as well as having the ability to accept a 4K resolution input signal.

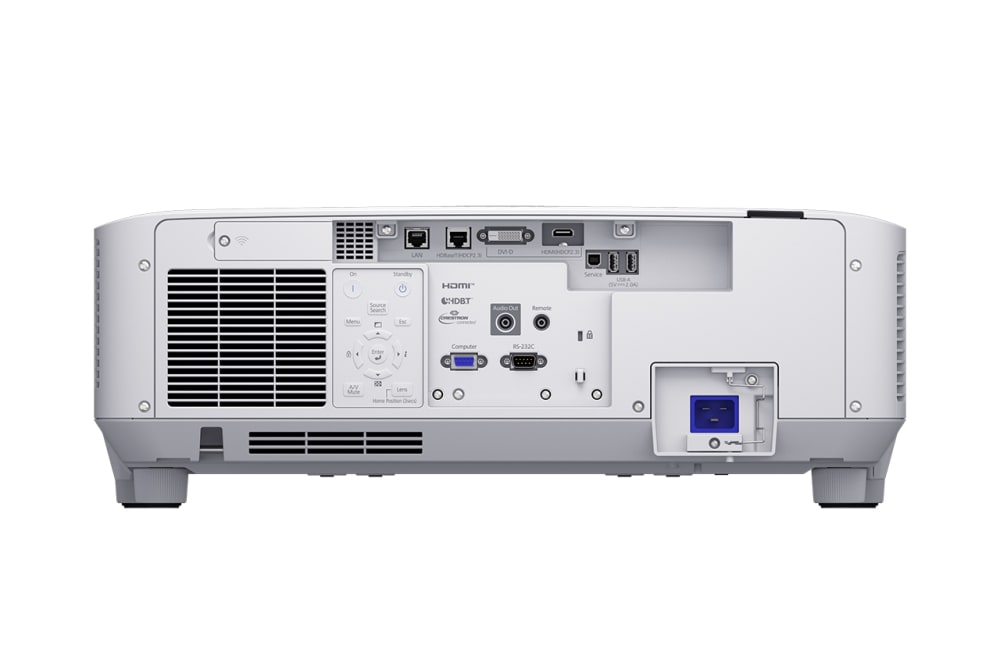

The PU2120W also features a laser light source for up to 20,000 hours (30,000 hours in eco mode), edge blending and split-screen capabilities, extensive connectivity including HDBaseT and 3D sync IN/OUT, lens memory and a fleet of optional powered interchangeable lenses.

PC-free stacking allows two projectors to achieve double the brightness without the need for external computer software.

What really sets the Epson EB-PU2120W apart from the competition is it’s weight and form factor. Traditionally, projectors with 20000 lumens were extremely large, heavy and would require at least two people to install and were primarily used for live events only. The PU2120W changes the game! with a form factor 70% smaller and 50% brighter than it’s predecessor, the unit can now be installed by just one technician. The EB-PU2120W now is not only a superb choice for live events, it is also a top contender for spaces such as visitor attractions, museums, art galleries, auditoriums and conference centres to name but a few.

The EB-PU2120W is the world’s smallest and lightest 20,000lm
projector. (1)

The EB-PU2120W offers users significant advantages including much reduced size and weight, easier installation and set-up, simplified maintenance and great image quality. This ultra-lightweight, compact laser projector has been designed for use in large auditoriums, live events, concerts, conference rooms where it delivers high-impact immersive experiences.

Interchangeable lens support

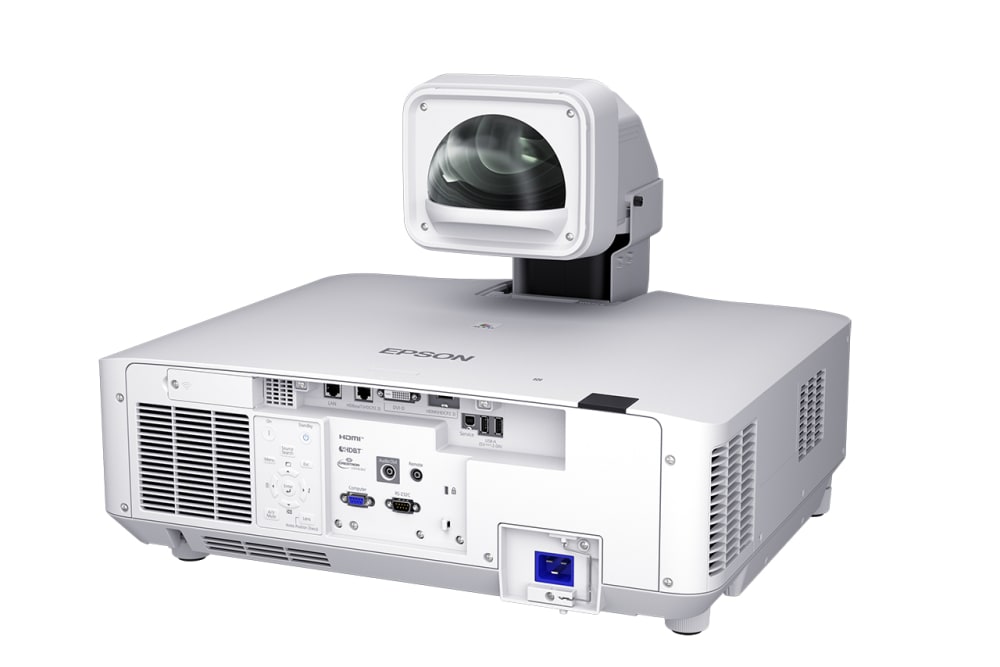

The EB-PU2120W accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.

• ELPLX02WS – 0.35:1 UST LENS (Lens Shift : Vertical + 25% Horizontal +/-15%)

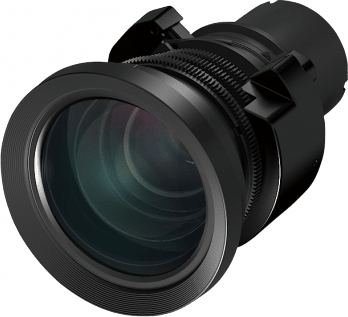

• ELPLU03S – 0.48 – 0.57:1 LENS (Lens Shift : Vertical + 24% Horizontal +/-10%)
• ELPLU04 – 0.64 – 0.77:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)

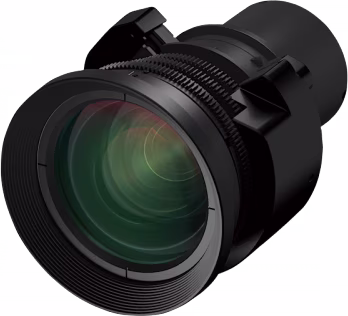

• ELPLW05 – 0.77 – 1.07:1 LENS (Lens Shift : Vertical +/- 24% Horizontal +/-10%)
• ELPLW06 – 1.19 – 1.62:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLM15 – 1.57 – 2.56:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLM10 – 2.42 – 3.71:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLM11 – 3.54 – 5.41:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)

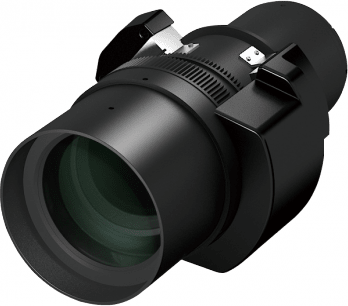

• ELPLL08 – 5.27 – 7.41:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)
• ELPLW08 – 0.86 – 1.2:1 LENS (Lens Shift : Vertical +/- 60% Horizontal +/-18%)

Compact and lightweight
The EB-PU2120W is 70% smaller and 50% lighter than its predecessor, the EBL20000U. The reduced weight and size means the projector is easier to store, transport and install, saving on warehouse space as well as labour and delivery costs.

Outstanding image quality
This high lumens, 3LCD projector offers WUXGA resolution with 4K
enhancement and HDR for rich textures and sharper images.

Flexibility
The EB-PU2120W’s functionality enables simple installation, stacking, lens
flexibility and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.

Reliability
Includes improved dustproofing as the hermetically sealed optical engine, and laser light source unit, prevent dust contamination to ensure enhanced durability.

(1. As of December 2021. Main unit without lens. 20,000lm in accordance with ISO 21118.)

KEY FEATURES:

Ultra-lightweight and compact
The world’s smallest and lightest 20,000lm projector1
Stunning image displays
20,000lm, 4K Enhancement technology, WUXGA resolution
Easy to use
Simple installation, stacking, lens flexibility and control
Fit-and-forget reliability
Enhanced dustproof construction. IP5x certified
Environmental benefits
Lower power consumption, reduced packaging, reduced weight


Number of colours

1.07 billion colours

Projector native resolution

WUXGA (1920×1200)

Native aspect ratio

16:10

Screen size compatibility

1524 – 25400 mm (60 – 1000″)

Contrast ratio (typical)

2000:1
