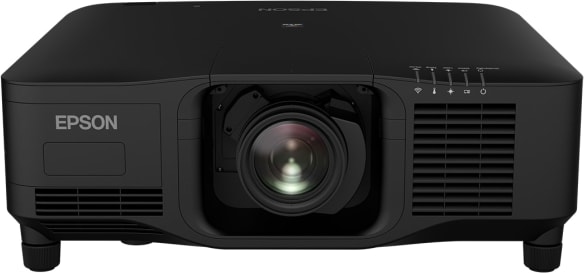

Epson EB-PQ2220B

Epson’s EB-PQ2220B projector delivers exceptional image quality and versatility for demanding applications. Equipped with 3LCD technology, it boasts stunning colour reproduction and 4K UHD high resolution for captivating audiences. Epson’s patented 4K Crystal Motion ensures smooth, detailed motion even in fast-paced content.


Designed for seamless integration, the EB-PQ2220B offers a wide range of connectivity options, including 12G SDI and HDMI inputs/outputs. Its high brightness and cross-platform lens compatibility provide flexibility for various installations. The projector can be paired with Epson’s 4K lenses, such as the ELPLX02S zero-offset ultra-short throw lens, to create immersive, space-efficient setups.


As a body-only model, the EB-PQ2220B allows users to customise their projector system to meet specific needs and installation requirements with the fleet of optional powered interchangeable lenses available.


Interchangeable lens support
The EB-PQ series accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.

• ELPLX02WS – 0.34:1 UST LENS (Lens Shift : Vertical + 23% Horizontal +/-10%)
• ELPLU03S – 0.46 – 0.56:1 LENS (Lens Shift : Vertical + 18% Horizontal +/-6%)
• ELPLU04 – 0.62 – 0.75:1 LENS (Lens Shift : Vertical +/- 56% Horizontal +/-16%)
• ELPLW05 – 0.74 – 1.04:1 LENS (Lens Shift : Vertical +/- 18% Horizontal +/-6%)
• ELPLW06 – 1.15 – 1.57:1 LENS (Lens Shift : Vertical +/- 58% Horizontal +/-16%)
• ELPLM15 – 1.52 – 2.47:1 LENS (Lens Shift : Vertical +/- 58% Horizontal +/-16%)
• ELPLM10 – 2.34 – 3.59:1 LENS (Lens Shift : Vertical +/- 58% Horizontal +/-16%)
• ELPLM11 – 3.42 – 5.23:1 LENS (Lens Shift : Vertical +/- 58% Horizontal +/-16%)
• ELPLL08 – 5.09 – 7.16:1 LENS (Lens Shift : Vertical +/- 58% Horizontal +/-16%)
• ELPLW08 – 0.83 – 1.17:1 LENS (Lens Shift : Vertical +/- 58% Horizontal +/-16%)

The world’s smallest and lightest 20,000lm 4K projector¹
Building on the success of the EB-PU Series, the EB-PQ2220B is not only the smallest and lightest in its class, but is highly affordable, versatile, extremely energy-efficient and packed with advanced features.

A revolutionary 4K experience
Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.

Fantastically flexible
Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied ‘body-only’, allowing you to build the perfect solution for your installation.

Reliable
Built for exceptional reliability, the EB-PQ2220B features IP5X rated dust resistance² and up to 20,000 hours maintenance-free operation, or even longer in extended modes.

Extensive software
Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.
