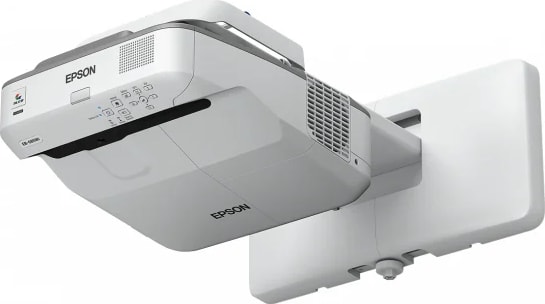

Epson EB-685W
The Epson EB-685W: an innovative teaching solution with ultra-short-throw design, 3,500 lumens, and HD-ready WXGA resolution. Perfect for enhanced learning.
- 3500 Lumens Brightness (Lamp / LCD)
- WXGA Resolution – 16:10 Aspect Ratio
- Lens Ratio 0.28-0.37 : 1
- 5 Years Return To Base warranty
- 5 Years / 1000 hours Lamp warranty
- 5.7 KG
- NB. Screen size calculator measurements based on front of lens to screen – it does not take into account projector chassis depth in front of lens
- Volume discounts available
£799.00 Excl. VAT
Quick Links
Projectorpoint Opinion
Discount pricing for Educational use – please call for further details
Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.
Manufacturer Overview
The EB-685W’s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.
Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.
Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.
Key Features
– Up to 100-inch display and outstanding quality: HD-ready WXGA resolution with Epson 3LCD technology
– Reliable: Improved reliability and a longer lamp life
– Wireless Connectivity (Optional): Allows content to be shown from a range of devices
– Long lamp life: Up to 10,000 hours in eco mode
– Ultra short throw projection: For maximum installation flexibility
Technical Specifications
- Number of colours
- 1.073 billion colours
- Projector native resolution
- WXGA (1280×800)
- Projection distance (wide)
- 0 – 0.4 m
- Projection distance (tele)
- 0 – 0.6 m
- Native aspect ratio
- 16:10
- Supported aspect ratios
- 16:10
- Screen size compatibility
- 1524 – 2540 mm (60 – 100″)
- Projection distance
- 0.4 – 0.6 m
- Contrast ratio (typical)
- 300:1
- Contrast ratio (dynamic)
- 14000:1
- Zoom ratio
- 1.35:1
- Zoom capability
- Yes
- Projector brightness (economic mode)
- 2900 ANSI lumens
- Matrix size
- 1.5 cm (0.59″)
- Keystone correction, vertical
- ±3°
- Keystone correction, horizontal
- ±3°
- Projection technology
- 3LCD
- Projector brightness
- 3500 ANSI lumens
Lamps
- Lamp power
- 250 W
- Light source type
- Lamp
- Service life of light source
- 5000 h
- Service life of light source (economic mode)
- 10000 h
Lens system
- Focus
- Manual
- Focal length range
- 0 – 3.76 mm
- Digital zoom
- 1.35x
Scanning frequency
- 2D/3D frequency image
- 100 – 120 Hz
Video
- Video processing
- 10 bit
- Video colour modes
- Blackboard, Cinema, Dynamic, Presentation, sRGB
- Colour modes (2D)
- Cinema, Dynamic
- Full HD
- No
- HD-Ready
- Yes
- 3D
- No
- Built-in speaker(s)
- Yes
Number of built-in speakers
- Number of built-in speakers
- 1
- RMS rated power
- 16 W
Ports & interfaces
- Mobile High-Definition Link (MHL)
- Yes
VGA (D-Sub) ports quantity
- VGA (D-Sub) ports quantity
- 3
HDMI ports quantity
- HDMI ports quantity
- 3
Ethernet LAN (RJ-45) ports
- Ethernet LAN (RJ-45) ports
- 1
USB 2.0 ports quantity
- USB 2.0 ports quantity
- 2
- USB connector type
- USB Type-A, USB Type-B
Composite video in
- Composite video in
- 1
Audio (L/R) in
- Audio (L/R) in
- 1
Headphone outputs
- Headphone outputs
- 1
- Microphone in
- Yes
- Serial interface type
- RS-232
RS-232 ports
- RS-232 ports
- 1
- DVI port
- No
- AC (power) in
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100 Mbit/s
- Card reader integrated
- No
Sound emission
- Noise level
- 35 dB
- Noise level (economic mode)
- 28 dB
Technical details
- Product colour
- Grey, White
- Air filter
- Yes
- Products per pallet layer (UK)
- 2 pc(s)
- Products per pallet (UK)
- 12 pc(s)
- Pallet width (UK)
- 100 cm
- Pallet height (UK)
- 141 cm
Performance
- Password protection
- Yes
- Mac compatibility
- Yes
- Windows operating systems supported
- Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
- Mac operating systems supported
- Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Features
- Country of origin
- Philippines
Design
- Product type
- Ultra short throw projector
- Cable lock slot type
- Kensington
- Cable lock slot
- Yes
- Placement
- Wall
Power
- AC input voltage
- 220 – 240 V
- AC input frequency
- 50 – 60 Hz
- Power consumption (typical)
- 354 W
- Power consumption (standby)
- 0.39 W
- Power consumption (PowerSave)
- 310 W
Packaging data
- Package width
- 490 mm
- Package depth
- 730 mm
- Package height
- 335 mm
- Package weight
- 18.5 kg
Software
- Bundled software
- EasyMP Monitor, EasyMP Multi PC Projection
Other features
- Remote control type
- IR
Operational conditions
- Storage temperature (T-T)
- -10 – 60 °C
Weight & dimensions
- Weight
- 5.7 kg
- Width
- 367 mm
- Depth
- 400 mm
- Height
- 149 mm
Packaging content
- Remote control included
- Yes
- Manual
- Yes
- Cables included
- USB
- Batteries included
- Yes
