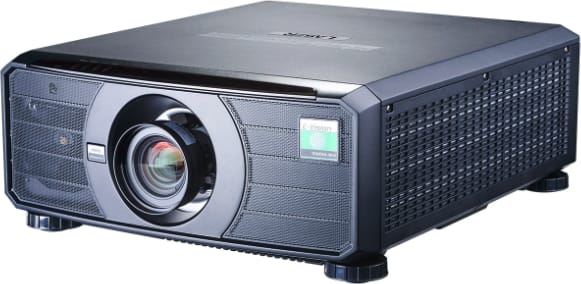

Digital Projection E-Vision 10000i WU

The Digital Projection E-Vision 10000i WU is a high-performance laser projector designed for large venues, auditoriums, and demanding applications. It boasts impressive specifications and features including :

• Powerful Brightness: Producing 8600 lumens, the E-Vision 10000i cuts through ambient light with ease, making it ideal for large, brightly lit venues.
• High Contrast Ratio: The 20,000:1 contrast ratio delivers deep blacks and rich colours for a captivating image with impressive detail.
• Laser Phosphor Light Source: Offers long-lasting performance (estimated 20,000 hours) and eliminates the need for frequent lamp replacements, reducing maintenance costs.
• Sealed Optics and Dust Filterless Design: The IP6x rated sealed optics protect the projector from dust and other environmental contaminants, ideal for dusty environments or permanent installations. Additionally, the filterless design minimises maintenance needs.
• 24/7 Operation: Engineered for continuous use, making it suitable for demanding applications like digital signage or control rooms.
• Advanced Connectivity: Supports HDBaseT for a single-cable connection carrying video, audio, control signals, and power over long distances. Art-Net compatibility allows integration with stage lighting and control systems for seamless integration in professional environments.
• Interchangeable Lenses: Offers flexibility to adapt the projector to various throw distances and screen sizes.

Optional Lens:
Digital Projection Lens E-Vision 0.38:1 on 1080p/WUXGA (E Vision 6900, 8500,10K) – 117-341
Digital Projection Lens E-Vision 0.75 – 0.93:1 on 1080p/WUXGA (E Vision 6800, 6900, 8500,10K) – 115-339
Digital Projection Lens E-Vision 0.76:1 on 1080p/WUXGA (E Vision 6900, 8500,10K) – 112-499
Digital Projection Lens E-Vision 1.25 – 1.79:1 on 1080p/WUXGA (E Vision 6800, 6900, 8500,10K) – 112-500
Digital Projection Lens E-Vision 1.72 – 2.27:1 on 1080p/WUXGA (E Vision 6800, 6900, 8500,10K) – 112-501
Digital Projection Lens E-Vision 2.22 – 3.67:1 on 1080p/WUXGA (E Vision 6800, 6900, 8500,10K) – 112-502
Digital Projection Lens E-Vision 3.58 – 5.38:1 on 1080p/WUXGA (E Vision 6800, 6900, 8500,10K) – 112-503
Digital Projection Lens E-Vision 5.31 – 8.26:1 on 1080p/WUXGA (E Vision 6800, 6900, 8500,10K) – 112-504

E-Vision 10000i WU

The all new E-Vision 10000i boasts 9,600 lumens brightness and 20,000:1 dynamic contrast, and shares the same advanced capabilities usually reserved for high-end 3-Chip products, such as Source Redundancy, Brightness Sync and Auto White Balance Correction, making these some of the most capable, flexible Single-Chip DLP projectors on the market today.

The E-Vision 10000i boasts stable 24/7 operation via efficient heat dissipation and excellent thermal conductivity ensures peak-performance and reliability.

Nexus – Our Next Generation Electronics Platform
Our Next-generation electronics platform has been designed to deliver the most advanced image processing to all projectors. Whichever of our projectors you use, you will be totally familiar with its operation, OSD menu structure and functionality, all of which is seamlessly integrated into our free, Projector Control II software.

IP6x Sealed Optics
The optical system, from the laser light source up to the lens is completely sealed is IP6x rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is liquid cooled and uses a radiator heat exchanger, minimising maintenance as no replacement or cleaning of filters is necessary and allows unrestricted airflow.

Source Redundancy
Source redundancy offers peace of mind for those critical live events. When the main signal is lost, the projector will switch to the backup source to automatically

Flexible Geometry Adjustment
Intuitive adjustment which can be adjusted via PC tool or Remote Controller with a grid on-screen which is synchronized with PC tool

Art-Net Support
Stage controller with Art-Net can directly control the projector (power on/off/brightness adjustment) by network without the need for any DMX to-Net Converter

Intelligent Lens Memory
Intelligent Lens Position Memory which can quickly reset the lens position defined by the user including focus, zoom and lens shift

24/7 operation
The E-vision 10000i boasts stable 24/7 operation via efficient heat dissipation and excellent thermal conductivity ensures peak-performance and reliability
