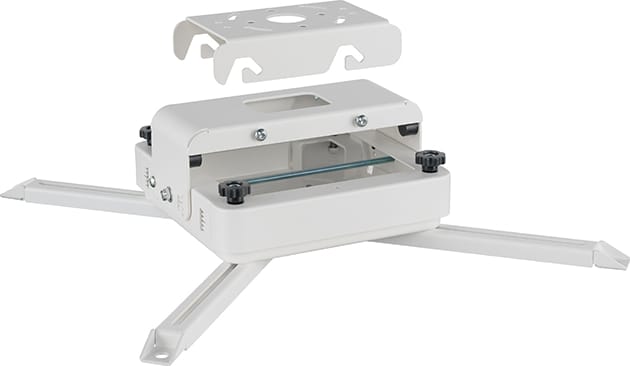

BTech – Heavy Duty Projector Ceiling Mount – White (BT893/W)

Designed to mount projectors up to 70kg, the BT893 heavy duty projector mount can be fixed directly to the ceiling or can be mounted to any 50mm B-Tech pole. Easy adjustment of tilt, yaw and roll, with additional micro-adjustment at each corner makes alignment of projections quick and simple. The projector fixes to a mounting plate that can be extended to accommodate larger fixing patterns using the included extension legs, making the BT893 ideal for large scale and precision applications such as events and staging or for edge-blending and projection mapping.

If you intend to use one of the option column lengths you will need the projector mount (BT893), optional column length and ceiling bracket (BT7822/B).If If you intend to join multiple column lengths you will need 1 x BTech 50mm Diameter Internal Pole Joiner (BT7823/Z) per column join

• • Features easy, incremented tilt adjustment
  • Micro-adjustment thumbwheels at 4-points for controlled and precise adjustment of the projector
  • Ideal for use with projection mapping projectors
  • Quick and easy assembly
  • Can be mounted to the ceiling directly or to any B-Tech 50mm pole
  • Optional extension legs can be used to accommodate larger fixing patterns
  • Suitable for projectors using M6, M8, M10 and M12 fixings
  • All mounting hardware included
  • Maximum load: 70kg (155lbs)
  • Tilt adjustment: +20°/-10° (+/- 5° with micro-adjustment)
  • Roll adjustment: +/-5°
  • Yaw: 25° (ceiling mounted) / 45° (pole mounted)
  • Maximum distance between any two fixing points: 873.2mm (34″)
  • Maximum square fixing pattern that can be mounted: 617.5mm (31″)

• CEILING PLATE, TRUSS CLAMP AND EXTENSION POLES SOLD SEPARATELY
