BTech – Extra Large Projector Ceiling Mount (BT899XL)

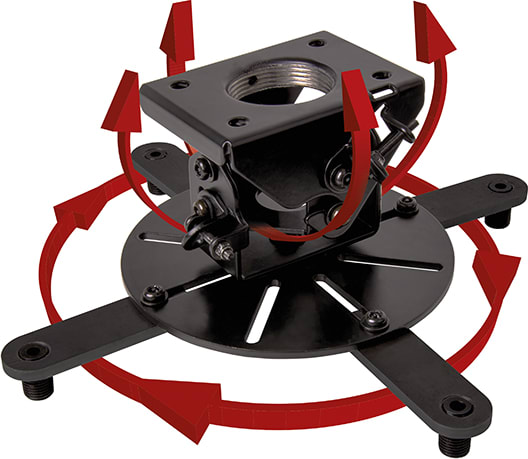

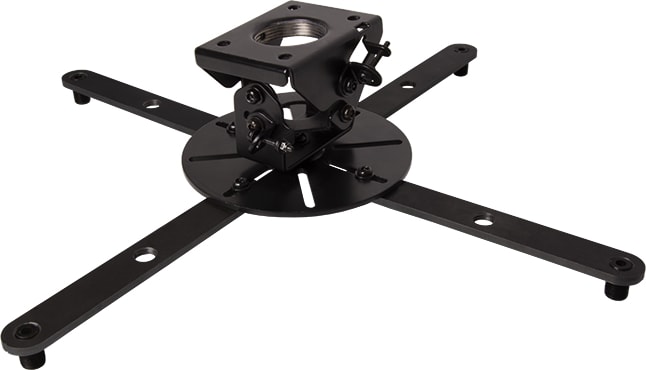

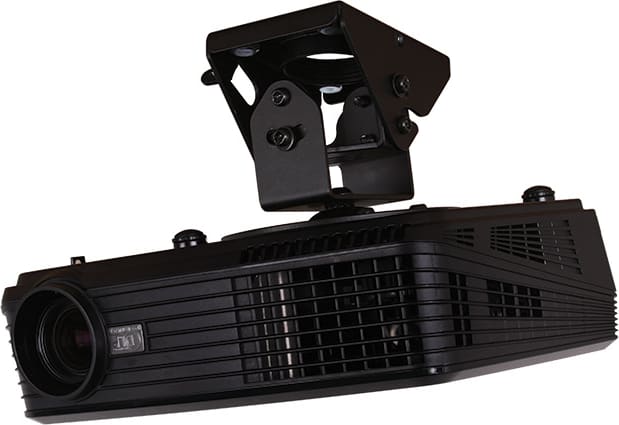

BT899XL is a universal projector ceiling mount designed to mount projectors up to 25kg. Compatible with B-Tech’s System 2 professional range, this mount can be fitted flush to the ceiling or attached to BT7850 Ø50mm poles using the supplied pole adaptor. The Projector Mount is designed with easy adjustment of tilt, roll and swivel and optional micro-adjustment for short throw projectors making this mount the ideal solution for installing heavy duty projectors.

– Can be mounted directly to the ceiling or onto a pole
– Compatible with the System 2 range and 1.5″ NPT pipe systems
– Long and short extension legs are supplied to accommodate
– a large range of fixing patterns up to 494mm
– Pre-assembled for a simple three step installation

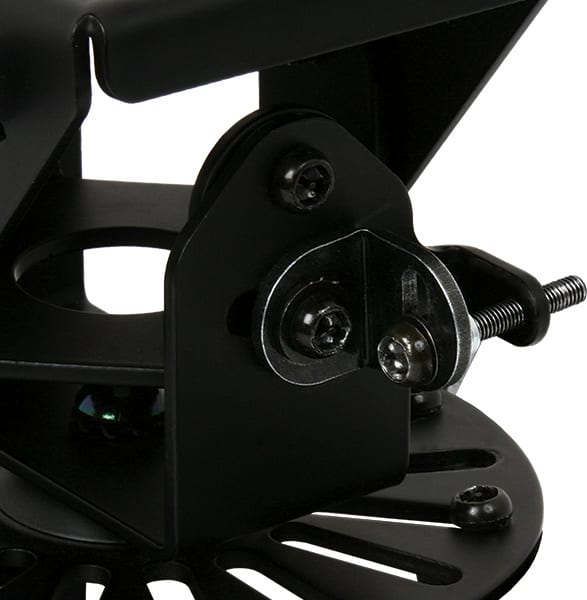

– Micro-adjustment for short throw projectors
– Integrated cable management for a smart installation
– Unique ‘carousel’ mounting plate for universal compatibility
– Security locking screws and Allen key provided for a secure installation
– Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
– All mounting hardware included

• Maximum Weight: 25kg (55lbs)
• Tilt (Pitch): +/-13°
• Yaw: 360°
• Rollt: +/-6°
• Ceiling drop: 99mm
• Maximum distance between any two fixing points: 494mm (19.4”)
• Colours available: Black
• Community design number: 001713306-0004
