Blustream – HDMI/USB-C wall plate HDBaseT Transmitter (HEX31WP-TX)

In Stock
FREE UK Mainland Delivery

SKU: x12189

£485.00 Excl. VAT

Manufacturer Overview

The Blustream HEX31WP-TX features both manual or automated source selection and includes display on/off control via CEC, RS-232 and IR (via compatible HDBaseT Receivers / Matrix). The HEX31WP-TX has been designed to work with all Blustream HDBaseT Receiver and Matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT products

Key Features

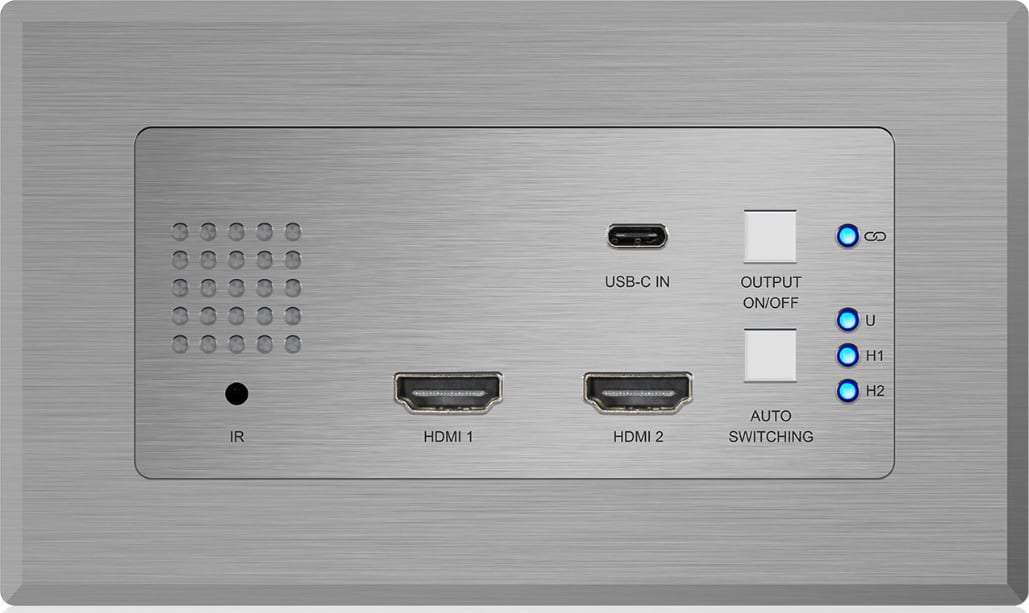

  • Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Extends HDMI at 1080p up to a distance of 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Input selection via front panel, IR or RS-232
  • Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT Receiver
  • Supports 12V-48V PoC from compatible Blustream HDBaseT Receiver / Matrix products
  • Bi-directional RS-232 pass through
  • Supports IR pass-through to HDBaseT device
  • Compatible with all Blustream HDBaseT Receiver / Matrix products *
  • Magnetic faceplate surround allowing both UK & EU back box compatibility
  • HDCP 2.2 support
  • * Technical performance is subject to the features supported on the connected HDBaseT™ device

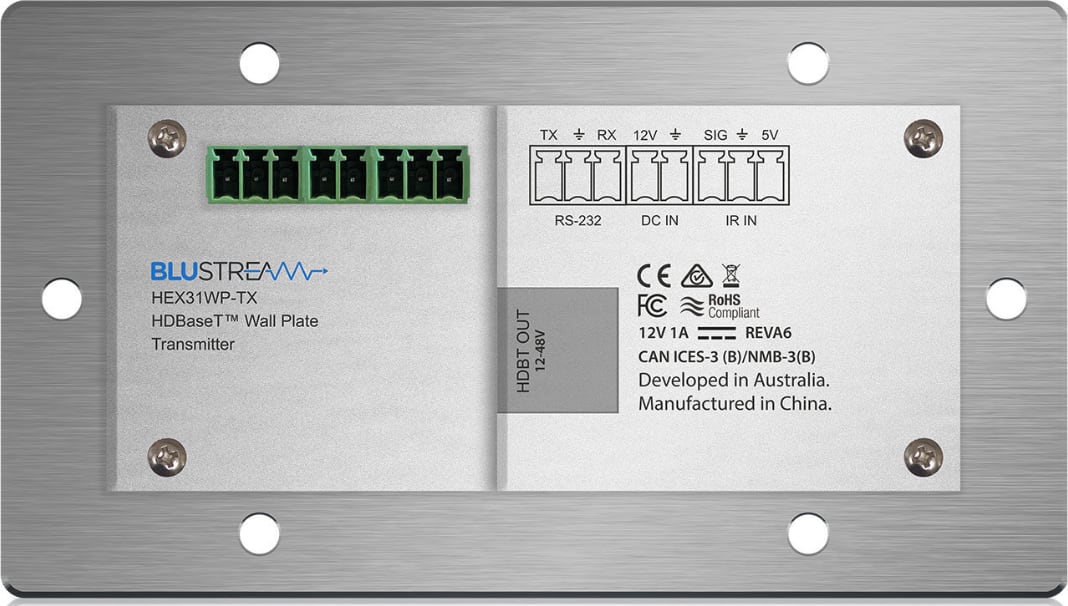

<Specifications

  • Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 1 x USB-C Type C
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • RS-232 serial port: 1 x 3-Pin Phoenix connector
  • IR Input port: 1 x 3-Pin Phoenix connector
  • Product upgrade: 1 x Micro USB female
  • Local power input: 1 x 2-Pin Phoenix connector
  • Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
  • Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
  • Backbox Mounting Depth: 40mm (minimum) – not supplied
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Power Supply: 12V/1A DC
