Blustream – Advanced HDBaseT Extender Kit (HEX18G-KIT)

HEX18G-KIT
Advanced HDBaseT Extender Kit Supporting Uncompressed and Unconverted HDMI 2.0 4K 60Hz 4:4:4 up to 100m, Bi-directional IR, HDCP 2.3.

Description
The HEX18G-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT technology.
The HEX18G-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.
The HEX18G-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable.

Key Features

• Advanced uncompressed, unconverted, HDMI over HDBaseT technology offering distribution of bit for bit 4K HDMI video and audio over a single CAT6A cable
• Supports HDMI 2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
• Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
• Supports HDMI video distribution up to 100m*
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HDBaseT Receiver to help solve HDMI HDCP, compatibility and handshaking issues
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Bi-directional IR & RS-232 pass through
• Supplied with Blustream IR receiver and emitter
• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4

*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling

Specifications

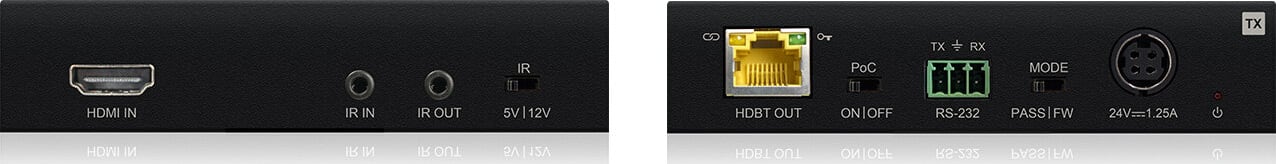

HEX18G-TX

• Video Input Connectors: 1x HDMI Type A, female
• Video Output Connectors: 1x HDBaseT RJ45 connector
• IR Input ports: 1x 3.5mm stereo jack
• IR Output ports: 1x 3.5mm mono jack
• RS-232 serial port: 1x 3-pin Phoenix connector
• Power Supply: 1x 24V/1.25A DC

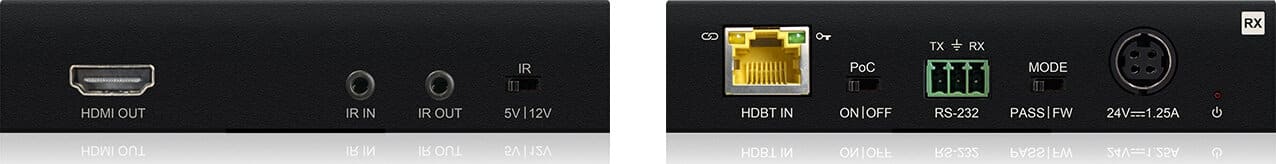

HEX18G-RX

• Video Input Connectors: 1x HDBaseT RJ45 connector
• Video Output Connectors: 1x HDMI Type A, female
• IR Input ports: 1x 3.5mm stereo jack
• IR Output ports: 1x 3.5mm mono jack
• RS-232 serial port: 1x 3-pin Phoenix connector
• Power Supply: 1x 24V/1.25A DC

• Casing Dimensions (W x D x H ): 95mm x 116mm x 24mm (TX and RX)
• Shipping Weight (Kit): 1.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Mounting kits included
• Power Supply: 1x 24V/1.25A DC

Box Contents
1 x HEX18G-TX Transmitter
1 x HEX18G-RX Receiver
1 x 24V/1.25A DC power supply
1 x IRE1 receiver
1 x IRR emitter
2 x Mounting brackets
1 x Quick Reference Guide
