Blustream HDMI 4K HDCP 2.2 compliant splitter with in-built down-scaler (SC12SP-V2)

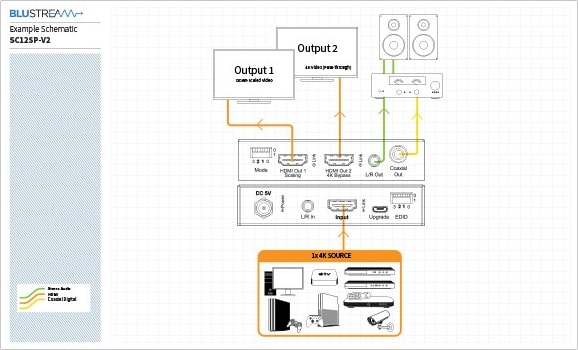

The Blustream SC12SP-V2 is a 4K HDMI 2.0 splitter with in-built scaler, designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions. The SC12SP-V2 supports down-scaling of up to 4K 60Hz 4:4:4 video to various lower resolution video formats. The SC12SP-V2 also includes audio breakout, advanced EDID management and supports HDCP 2.2.

Key Features

• • Features 1x HDMI input that is replicated to 2x HDMI outputs
  • Supports HDMI 2.0 18 Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • HDMI output 2 supports 4K UHD video pass-through
  • HDMI output 1 will down-scale the video input to the following formats:
    1080P@ 24/25/30/50/60Hz (for screens that do not support 4K) and 4K 50/60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently
  • Advanced EDID management
  • HDCP 2.2 compliant

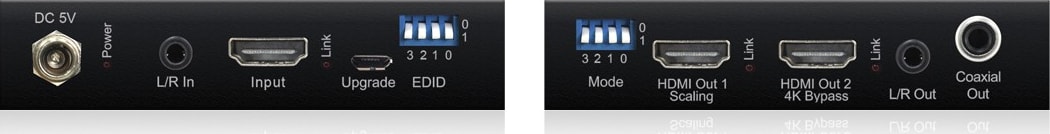

Specifications :

• Video Input Connectors: 1x HDMI Type A, 19-pin, female
• Video Output Connectors: 2x HDMI Type A, 19-pin, female
• Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)
• EDID: 4-PIN DIP switch
• Product upgrade: 1x 3-Pin Phoenix connector & 1x Type A USB female
• Dimensions (W x H x D): 122mm x 23mm x 135mm
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/2A DC
