Blustream HDBaseT CSC Extender Set Supporting 4K HDR (HEX70CS-KIT)

In Stock
FREE UK Mainland Delivery

SKU: x11248

£352.00 Excl. VAT

Manufacturer Overview

HDBaseT CSC Extender Set Supporting HDMI2.0 4K60Hz 4:4:4 up to 40m (1080p up to 70m), Bi-directional IR & RS-232, EDID Management, HDMI Loop-Out, Audio Breakout, Bi-directional PoH (PoE), HDCP2.2

Key Features

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Features 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI re-clocking on the HDBaseT Receiver to help solve HDMI HDCP, compatibility and handshaking issues
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR pass through
  • Supplied with Blustream 5V IR receiver and emitter
  • Advanced EDID management
  • HDCP2.2 compliant

<Specifications

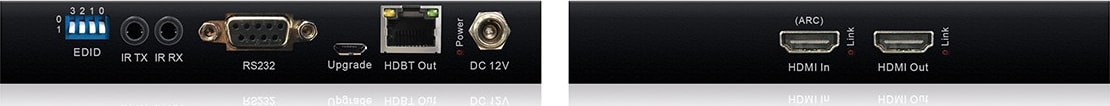

    • HEX70CS-TX transmitter



  • Video Input Connectors: 1x HDMI Type A, female
  • Video Output Connectors: 1x HDBaseT RJ45 connector, 1x HDMI Type A, female
  • RS-232 serial port: 1x DB-9 female
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • EDID DIP switch: 4-pin

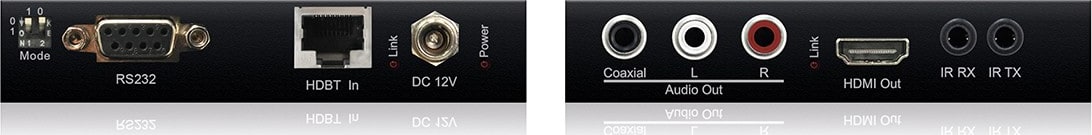

    • HEX70CS-RX receiver



  • Video Input Connectors: 1x HDBaseT RJ45 connector
  • Video Output Connectors: 1x HDMI Type A, female
  • RS-232 serial port: 1x DB-9 female
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)



  • Power Supply: 12V / 2A DC, screw type connector
  • Power Consumption: 12.7W
  • Transmitter Dimensions (WxDxH): 143 x 134 x 22mm (without connections)
  • Transmitter Dimensions (WxDxH): 143 x 141 x 22mm (with connections)
  • Receiver Dimensions (WxDxH): 113 x 124 x 22mm (without connections)
  • Receiver Dimensions (WxDxH): 113 x 138 x 22mm (with connections)
  • Ind. Extender Weight: 0.35kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): TBCmm
  • Shipping Weight: 1.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting kits included
