Blustream 4-Way 4K HDMI Switch (SW41AB-V2)

The Blustream SW41AB-V2 is a 4-Way HDMI switch with integrated audio breakout. The V2 switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Key Features

• • Features 4x HDMI inputs which can be switched to a single HDMI output
  • Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • V2 product supports full HDMI 2.0 specification with 4K UHD video to 4K @60Hz 4:4:4
  • Supports 3D signal display
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently
  • Control via front panel and IR (remote control included)
  • Advanced EDID management
  • HDMI 2.0 and HDCP 2.2 compliant

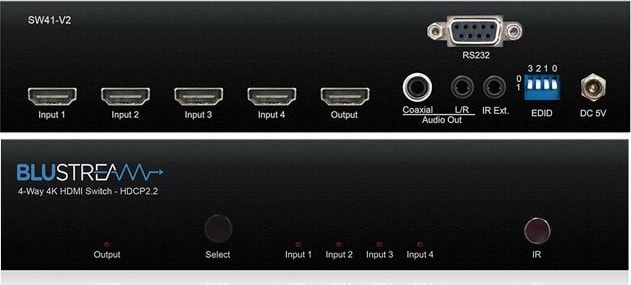

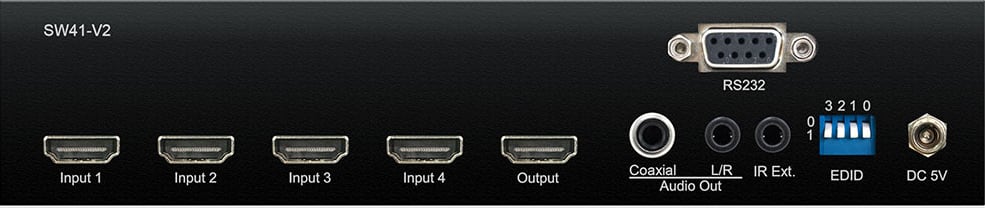

Specifications

• Video Input Connectors: 4x HDMI Type A
• Video Output Connectors: 1x HDMI Type A
• Audio Output Connectors: 1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)
• IR Input Ports: 1x 3.5mm stereo Jack
• RS232 Control Port: 1x DB9 (female)
