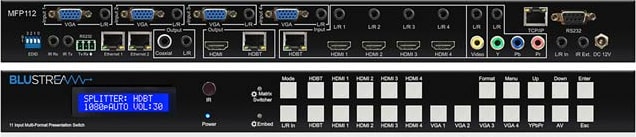

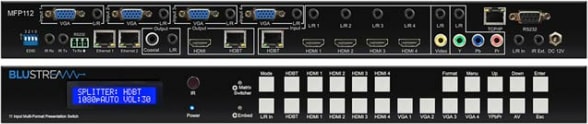

Blustream 11 input Multi-Format Presentation Switch (MFP112)

The Blustream MFP112 is a multi-format presentation switcher within-built video scaling, audio embedding, de-embedding, EDID management and HDBaseT input and output. The MFP112 works in 2 modes, first as a 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1x HDBaseT + 4x HDMI inputs only and output 2 switching all 11 video + audio inputs.
With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Key Features

• • Splitter mode – Both HDMI output 1 & HDBaseT output 2 display the same selected input.
  • Matrix Switcher mode – HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT input + HDMI inputs 1-4 ONLY (HDMI signal pass-through including 4K resolution), whilst HDBaseT output 2 has access to all HDMI, HDBaseT and analogue video inputs with associated audio.
  • HDBaseT output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management.
  • HDBaseT input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
  • Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions).
  • Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K.
  • Scaled video output resolutions include 720p, 1080P, 1280×1024, 1024×768, 1360×768, 1440,900, 1680×1050
  • Audio embedding – independent analogue L/R audio input can be embedded to HDMI/HDBaseT outputs + analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI/HDBaseT outputs 1+2 in Splitter mode

and HDBaseT output 2 only in Matrix Switcher mode).

• HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
• Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs
• PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
• Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
• Front panel display for status feedback
• Control via front panel, IR, RS-232 and TCP/IP
• Advanced EDID management

Specifications

• Video Input Connectors: 4x HDMI Type A, 1x HDBaseT™ RJ45 connector, 4x VGA, 1x Composite, 1x Component (YPbPr)
• Video Output Connectors: 1x HDMI Type A, 1x HDBaseT RJ45 connector
• Audio Input Connectors: 11x Analogue audio 3.5mm stereo jack
• Audio Output Connectors: 1x Analogue audio 3.5mm stereo jack, 1x SPDIF Coaxial digital
• RS-232 serial port: DB-9 connector (Matrix control), 1x 3-pin Phoenix connector for RS232 pass-through
• IR Input ports: 2x 3.5mm stereo jack
• IR Output ports: 2x 3.5mm mono jack
• Casing Dimensions (W x H x D): 438mm x 45mm x 225mm, without feet
• Dimensions Including Connections (W x H x D): 438mm x 45mm x 235mm
• Power Supply: 12V/5A DC
