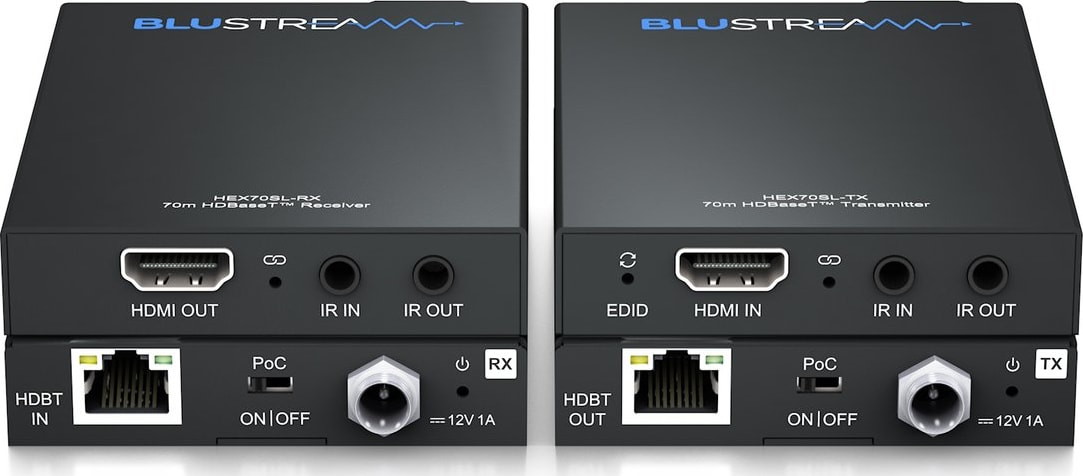

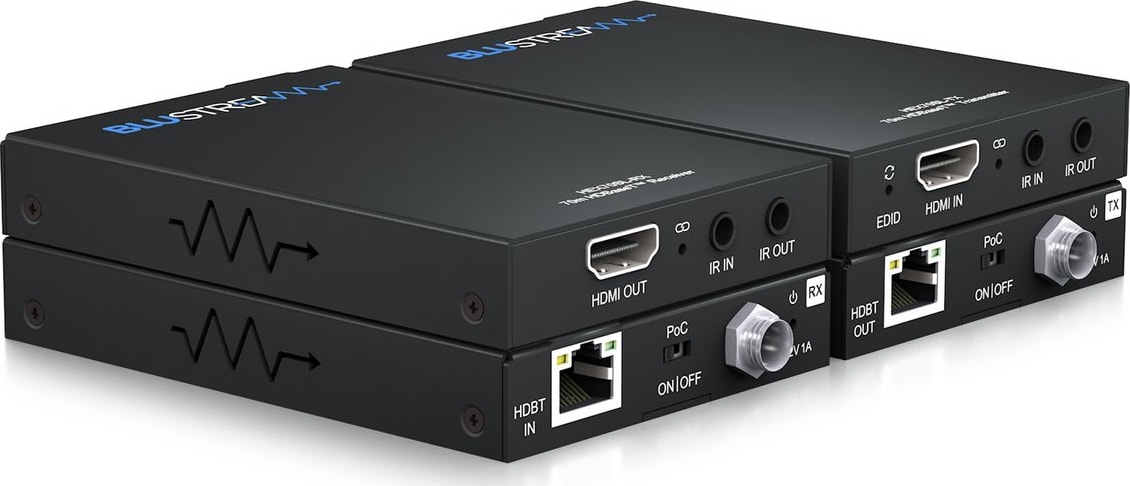

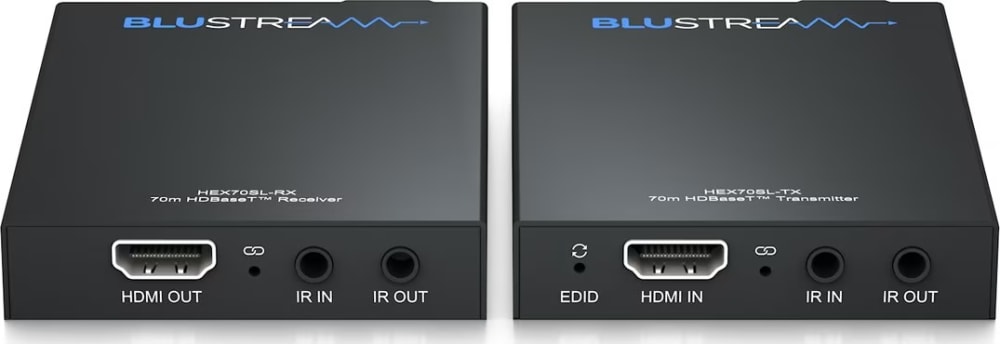

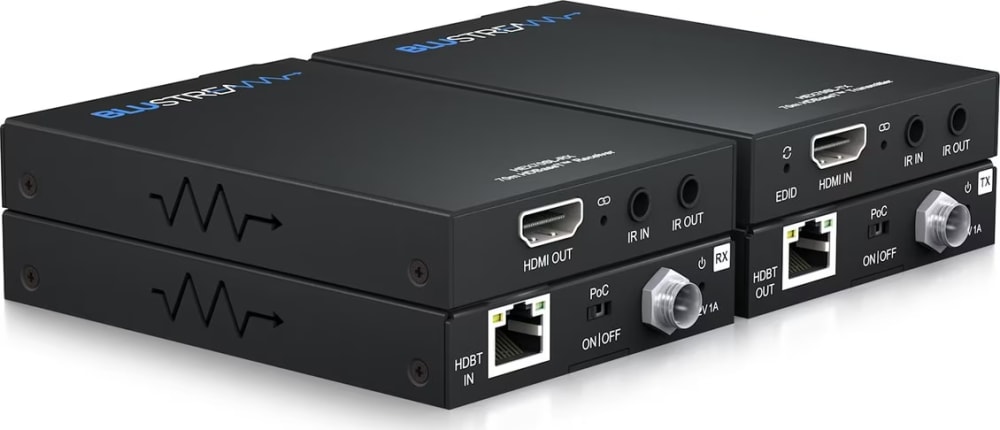

Blustream – Slimline HDBaseT Extender Set – 70m – 4K up to 40m (HEX70SL-KIT)

HEX70SL-KIT
Slimline HDBaseT Extender Set – 70m (4K up to 40m), Bi-directional IR and Bi-directional PoC.

Description
The HEX70SL-KIT 4K HDBaseT extender set offers market leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.

Box Contents
1 x HEX70SL-TX
?1 x HEX70SL-RX
?1 x 12V/1A DC Power Supply
?1 x IR Emitter
?1 x IR Receiver
?2 x Mounting Kit
?1 x Quick Reference Guide
?
Key Features
* Advanced HDBaseT technology offering uncompressed video and audio with zero latency
* Enhanced slimline chassis
* Extends HDMI 1080p up to a distance of 70m over a single CAT cable
* Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
* Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
* Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
* Bi-directional IR pass-through
* Supplied with Blustream IR receiver and emitter
* Supports Bi-directional PoC to power extenders from either transmitter or receiver end
* HDCP 2.2 compliant with smart EDID management

Specifications

HEX70SL-TX:
* Video Input Connectors: 1 x HDMI Type A, 19-pin, female
* Video Output Connectors: 1 x HDBaseT RJ45 connector
* IR Input Ports: 1 x 3.5mm stereo jack
* IR Output Ports: 1 x 3.5mm mono jack
* EDID: Pin hole button

HEX70SL-RX:
* Video Input Connectors: 1 x HDBaseT RJ45 connector
* Video Output Connectors: 1 x HDMI Type A, 19-pin, female
* IR Input Ports: 1 x 3.5mm stereo jack
* IR Output Ports: 1 x 3.5mm mono jack
?
* Power Supply: 12V/1A DC
* Dimensions: 106mm x 73mm x 16mm (LxWxH)
* Shipping Weight: 0.8kg
* Operating Temperature: 32°F to 104°F (-5°C to +55°C)
* Storage Temperature: -4°F to 140°F (-25°C to +70°C)
