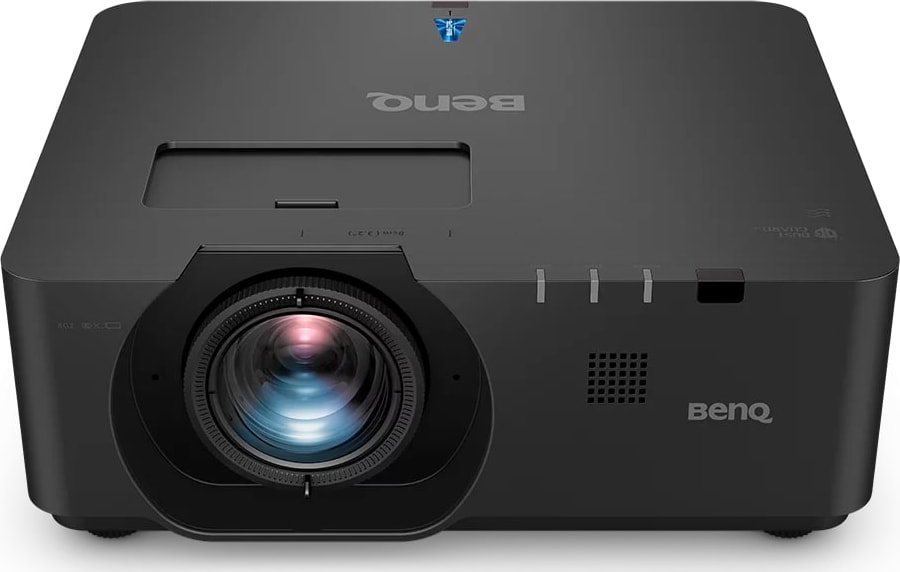

BenQ LU960ST2

Enhanced Laser Brightness
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5200 ANSI, offering superior image quality in bright environments with high brightness.

Designed with IP5X Protection
LU960ST2’s design of sealed laser modules and enclosed light engines protects the DMD chip, colour wheel sensor, laser package, and other optical components, prolonging the projector’s lifespan up to 20,000 hrs.

Superior DLP Durability
Comprising over two million micromirrors that reflect pure light through the colour wheel, the DLP chip is hermetically sealed to resist heat for over 200,000 hours without degradation.

Greater Contrast in Dark Scenes
The DLP technology performs at superior contrast level in dark scenes compared to 3LCD projectors, which contain too much brightness on the screen from internal light panel. This is important for training simulation applications because the dark scene of the night time need to be real to life for pilots to read the information and react correctly.

Exclusive Fast Mode with 17ms low latency
Based on expertise gained from BenQ experience with near-zero latency gaming, LU960ST2 employs a Fast Mode that provides latency as low as to 16.67ms (@WUXGA 60Hz) to achieve low-latency interactivity.

Projection Services
Projector experts at BenQ have the technical know-how required to assist you in choosing the best projection option for your AV or simulation needs by offering a full tailor-made consultation service.

Projection Planning
Our projection planning service includes 3D modeling of the projection in any scenario, using technical drawings to specify the appropriate projectors based on installation requirements.

Technical Consultation
After creating a detailed 3D model of the projection, our expert advisors provide the most suitable projection solution for your space, ensuring all requirements are met.

Flexible Installation in Limited Spaces
Highly installation-flexible for front and floor applications, LU960ST2 short throw DLP projector is the best choice for indoor simulation training and commercial space exhibitions.

Unobstructed Viewing with 0.5 Throw Ratio
The LU960ST2 is equipped with a TR 0.5 short-throw lens to create up to 200-inch sharp and clear images within only 2 meters away. This enables the audience to stand closer to the screen without casting a shadow.

H/V Lens Shift for mounting flexibility
The LU960ST2 features a vertical/horizontal lens shift to move the image up and down up to 55% of the screen height – and adjust the horizontal position by 23% for an off-axis mounting location. This feature allows you to adjust the location of the image precisely to where you want without moving the projector.

Large 2D keystone + Corner Fit
LU960ST2’s digital trapezoid correction function allows users to correct images easily. Use the remote control, and you can correct the images in a few clicks. Besides, Corner Fit allows users for final fine-tuning.

Management-Friendly Simulation Solution

White Balance Calibration for Seamless Edge Blending
BenQ’s exclusive out-of-the-box white balance adjustments can reduce white balance variables between projection images to a level of Delta E<2. This allows for seamless and accurate picture quality without disruptive discrepancies and saves time for blending.

One-click Professional Simulator Settings
BenQ LU960ST2 DLP laser projector is equipped with Simulator Mode, allowing users to activate an array of paired presets optimised for high-accuracy professional training at the touch of a button, ideal for multi-projector setup.

Remote Control Projector ID Setting for Independent Control
LU960ST2’s remote controller ID pairing avoids signal interference with multi-projector setup on one location. The wired remote control feature also improves the installation stability when adjusting projector placement.
Note: Animated visual for reference only. The projector shown may differ from your model.

Reliable Lens Lock & Metal Lens Barrel
BenQ LU960ST2 DLP laser projector is designed with the Lens Lock that can fix the final position, and focus of the lens, which avoids the need for any readjustment. In addition, the metal barrel lens helps the zoom and focus adjustment to be more stable and accurate compared to a plastic lens.

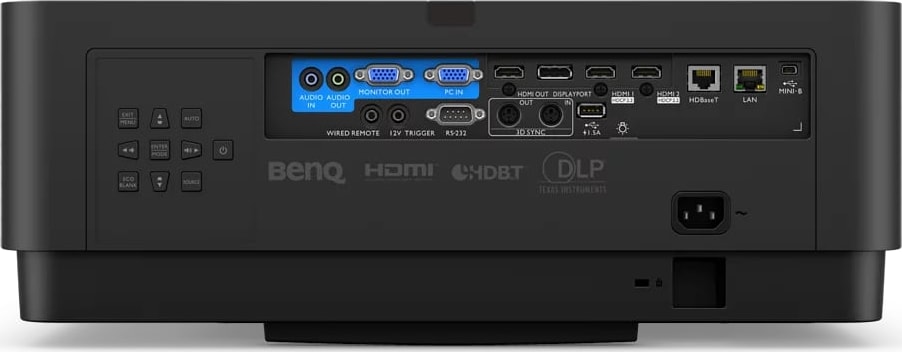

High Resolution and Accurate Colour Transmission

HDMI In/ out – HDMI 2.0 cable can handle 18Gbps bandwidth, allowing for 4K 60Hz plus HDR metadata at low latency and faster refresh rates.
DisplayPort – The high bandwidth of DisplayPort 1.2a allows increased resolutions, higher refresh rates, and greater colour depth. In addition, the dual barbs on the connector provide a friction lock, and an option for a mechanical latch.
3D Sync In /3D Sync out – Connect up to 4 projectors and project 3D content together via a single PC.
HDBaseT – HDBaseT connectivity combines Video, Audio, RS-232 and LAN control signals from multiple sources into a single RJ-45 cable, ensuring seamless transmission at up to 100 meters.

Easy Maintenance

BenQ In-house LAN-Based Control System
BenQ DMS Local is Device Information and Management software for use with the Windows operating system that also supports Agent Mode, allowing you to integrate your DMS Local settings with the DMS Cloud.

Network/Web Control
BenQ LU960ST2 laser projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components for centralised management of multiple projectors at less cost.

Horizontal scan range

15 – 135 kHz

Keystone correction, vertical

-30 – 30°

Keystone correction, horizontal

-30 – 30°

Projection technology

DLP

Projector brightness

5200 ANSI lumens

Lamps

Service life of light source

20000 h

Service life of light source (economic mode)

38000 h

Lens system

Throw ratio

.0.5

Video

Full HD

Yes

3D

Yes

Built-in speaker(s)

Yes

Number of built-in speakers

Number of built-in speakers

1

RMS rated power

10 W

Ports & interfaces

PC in (D-Sub)

Yes

DC-in jack

Yes

HDMI version

2.0a

VGA (D-Sub) ports quantity

VGA (D-Sub) ports quantity

1

HDMI ports quantity

HDMI ports quantity

2

Ethernet LAN (RJ-45) ports

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

USB 2.0 ports quantity

1

Headphone outputs

Headphone outputs

1

Microphone in

Yes

DisplayPorts quantity

DisplayPorts quantity

1

Serial interface type

RS-232

Mini-USB 2.0 ports quantity

Mini-USB 2.0 ports quantity

1

3D sync port

Yes

Network

Ethernet LAN

Yes

Card reader integrated

No

Technical details

HDCP

Yes

Features

High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)

High Dynamic Range (HDR) supported

Yes

Design

Product type

Short throw projector

Power

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Power consumption (typical)

450 W

Power consumption (standby)

0.5 W

Weight & dimensions

Weight

12 kg

Width

479.6 mm

Depth

402 mm

Height

182.8 mm

Packaging content

Remote control included

Yes

Cables included

AC

Other features

Security updates end date

31/12/2025
