PXL Universal Projector Mount PCM128EXT (Fixed and Adjustable drops)

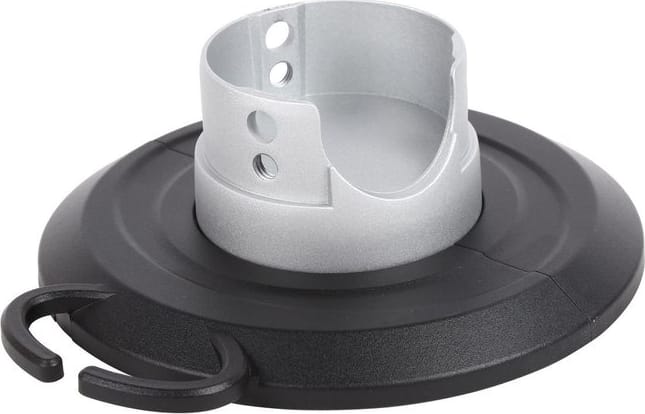

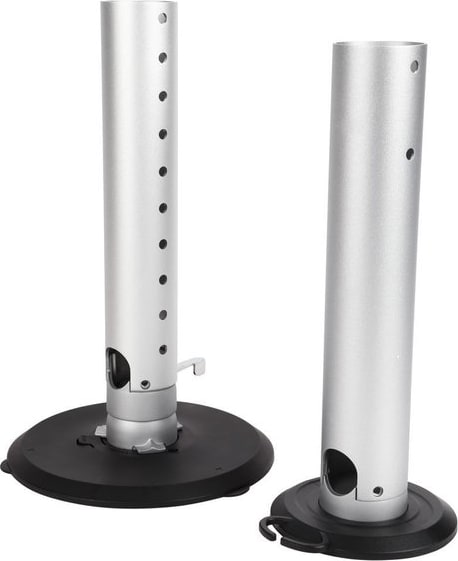

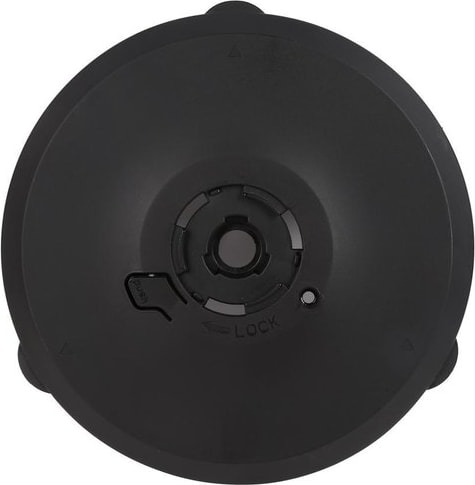

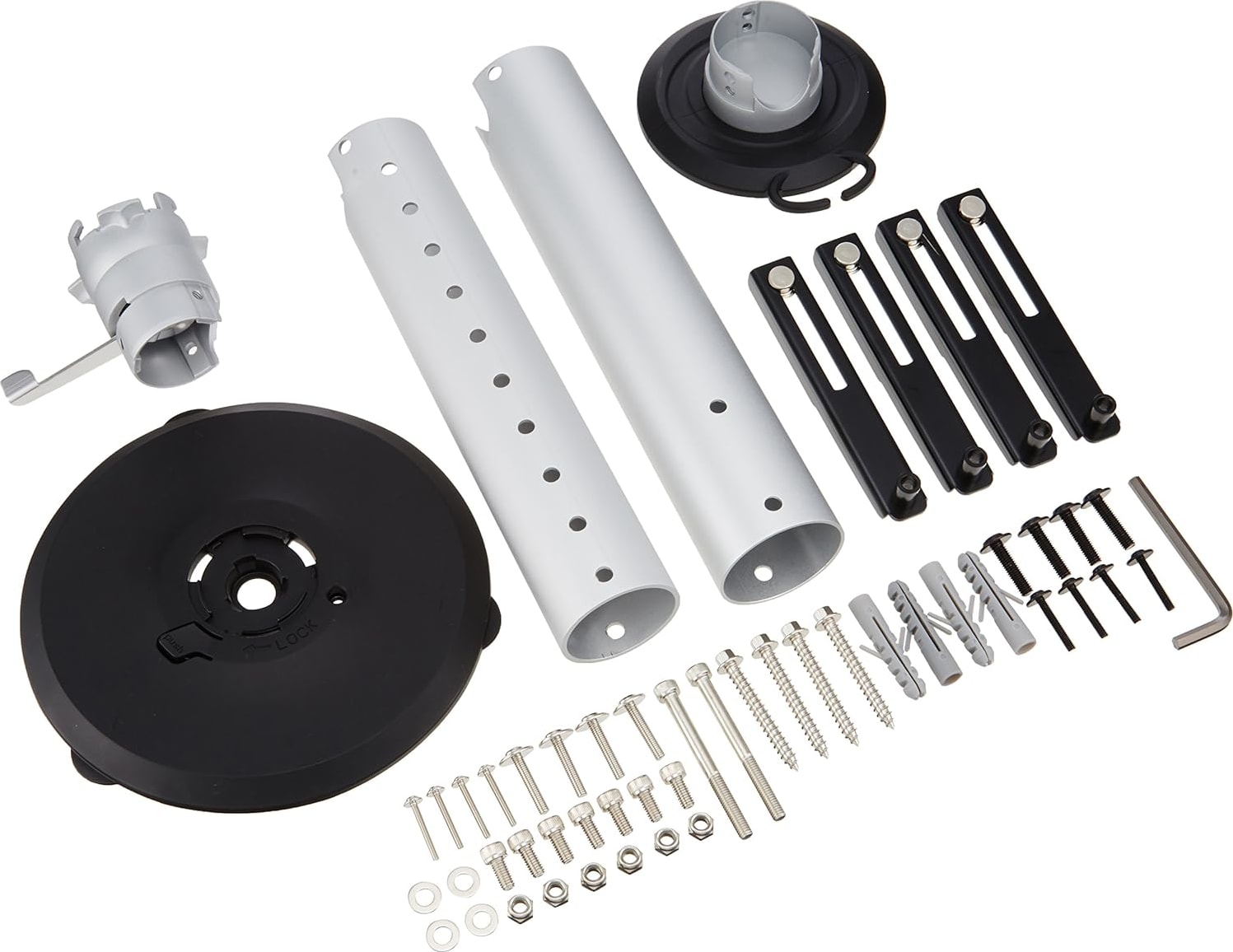

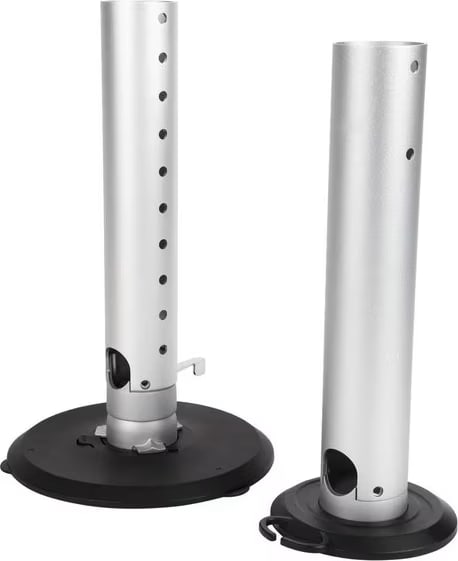

This mount has everything – flexible drop, easy to install, quick detach functionality and unlike most mounts it’s easy on the eye.It can be installed either close to the ceiling (128mm drop) OR with a longer drop (from 403mm to 578mm, in increments of 25mm).Those extension poles are includedIt’s easy to install as the ceiling plate can be installed first and then the projector quickly attached to that later.The PCM128EXT has also been designed with aesthetics in mind. if you use the optional poles they have a neutral silver powder coated finish. It is also supplied with 2 black trim covers, one to hide the ceiling plate (at last!) and the other for the projector plate.
£72.00 Excl. VAT
WishlistIn Wishlist Quick Links
Manufacturer Overview
Technical Specifications

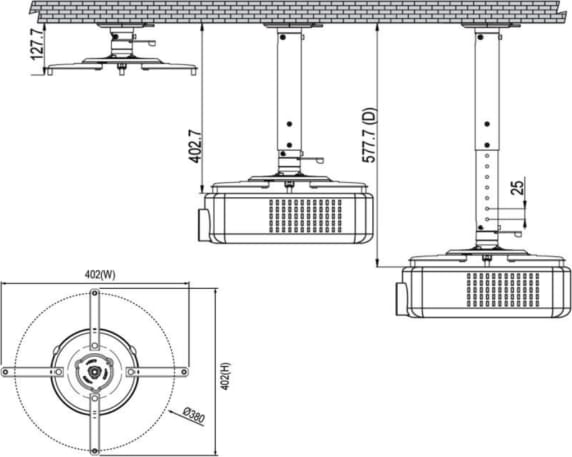

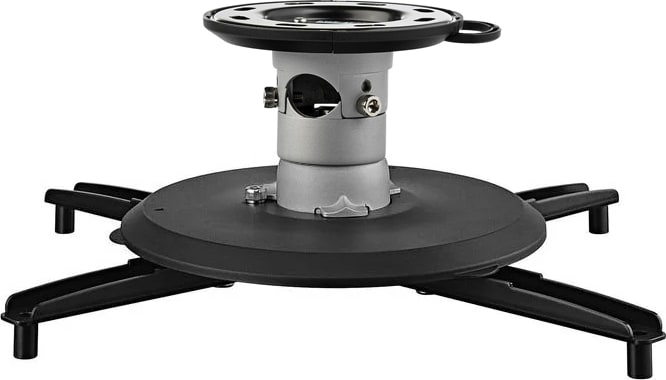

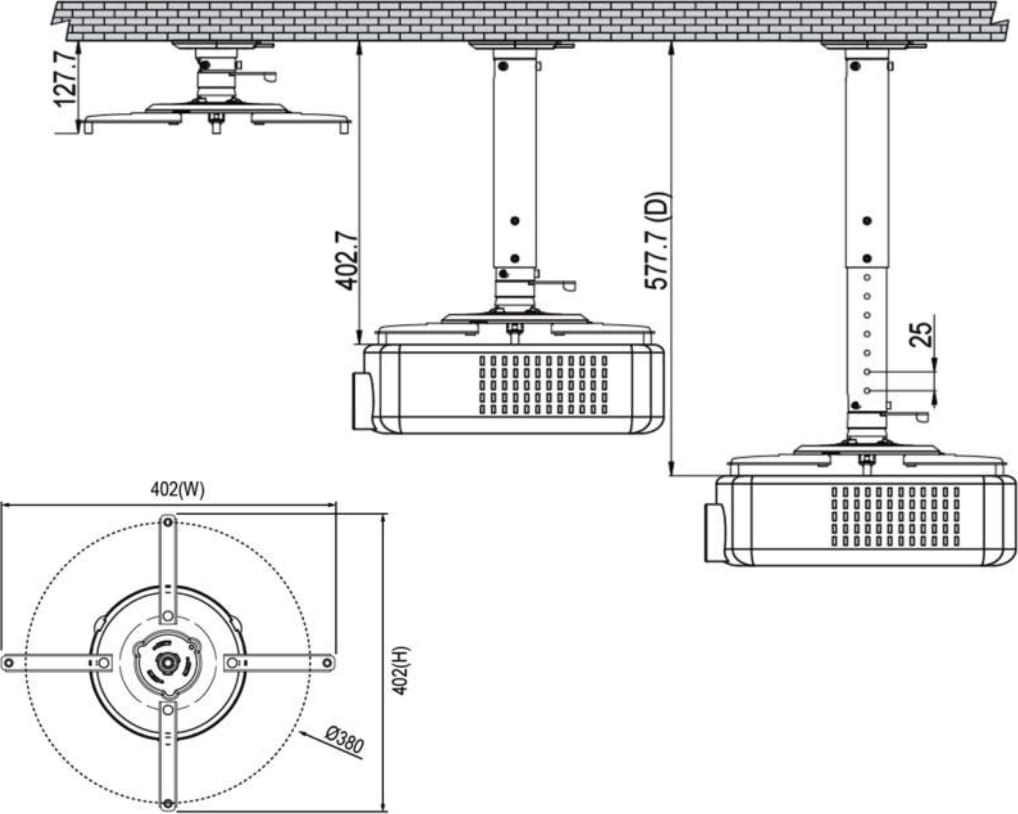

- Height when set up for close to ceiling use: 128mm

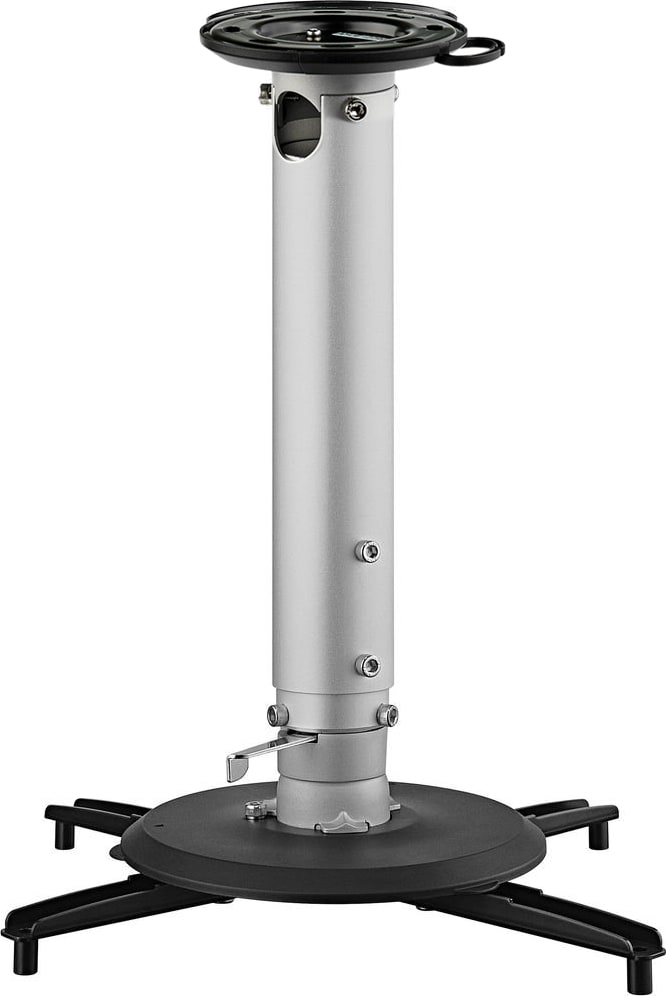

- Height when set up for adjustable drop use: From 403mm to 578mm in increments of 25mm
- MAX Working load : 15Kgs
- 380mm arm span
- Tilt angle: ±25°
- Full 360° rotatiuon
- Material: Steel/Aluminium alloys
- Mount Weight excluding projector: 1.76KGs
PXL Universal Projector Mount Installation Guide here.
Fine-Tune for Best View

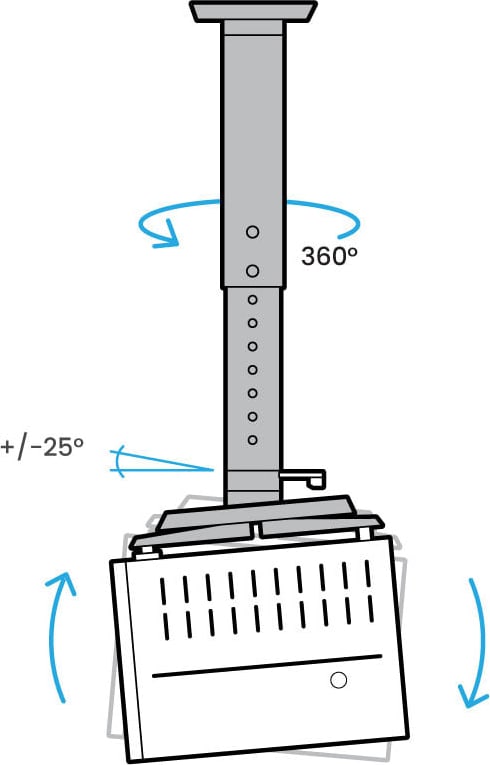

After mounting the projector to the ceiling, you can fine-tune the viewing angle for the best possible image. The flexible locking ball joint enables 360-degree rotation and +/- 25-degree tilt in both horizontal and vertical planes, providing versatile positioning options.
Steel and Aluminium Construction
This ceiling mount, built with sturdy steel and aluminium, supports projectors up to 15 kg.
Smart Design
The projector plate/bracket features four arms and supports projectors with 3 or 4 mounting holes using a universal pattern up to 380mm in diameter.
