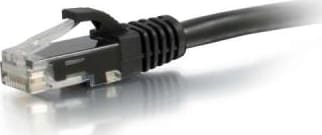

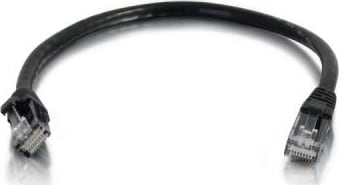

C2G – 2m Black Cat6 UTP Snagless RJ45 Patch Cable (C2G83408)

In Stock

SKU: X14182

£4.00 Excl. VAT

Manufacturer Overview

2m Cat6 Booted Unshielded (UTP) Network Patch Cable, Black
Snagless booted design for network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications.

• Product #: 83408
• Connector 1: (1) RJ-45 Male
• Connector 2: (1) RJ-45 Male

Product Description
For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colours to easily colour-coded your network installation. Each cable is individually labelled with the length for ease of use.

Product Features
• Snagless booted design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires
• Available in 11 colours to colour-code a network
• Available in lengths up to 100m

Product Specifications
• Colour: Black
• Length: 2.00 Meter
• Jacket Rating: Standard Non-Rated
• UPC: 757120834083
• Warranty: Lifetime
• Vendor: C2G
• Weight: 0.094 KG

Electrical Characteristics
• Conductor DC Resistance: 9.38Ω 100m (maximum)
• Impedance: 100Ω
• Capacitance: 5600pf/100m
• Propagation Delay: 545ns/100m (maximum)
• Delay Skew: 45ns/100m (maximum)

Physical Characteristics
• Wiring Scheme: T568B
• Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
• Connector: 50 micron gold-plated RJ45
• Temperature Rating: 60°C
• Voltage Rating: 30V
• Approvals: RoHS Compliant
• Warranty: Lifetime
• Package Type: Polybag

Conductor (Qty. 4 Twisted Pair)
• Conductor Type: 24AWG (7/0.20), Stranded Bare Copper
• Insulation: H-D PE
• Diameter: 0.98 ± 0.05mm
• Colours: Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White

Connector Type (Qty. 2)
• Connector Type: 8P8C (RJ45)
• Gender: Male
• Connector Material: Polycarbonate
• Contact Material: Copper Alloy, Gold Plating – 50µm
• Hood Material: Moulded PVC

Overall Cable
• Jacket: PVC
• Minimum Average Thickness: 0.60mm
• Outer Diameter: 6.20 ± 0.30mm

Product Uses
• Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
• 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
• 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
• Voice; T1
