C2G – 0.5m Black Cat6 UTP Snagless RJ45 Patch Cable (C2G83405)
£2.00 Excl. VAT
Quick Links
Manufacturer Overview

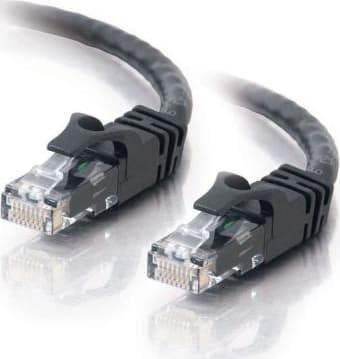

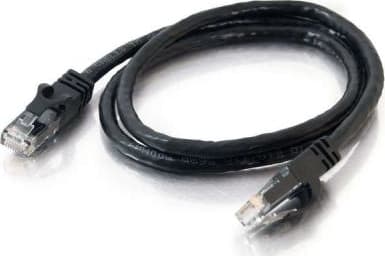

0.5m Cat6 Booted Unshielded (UTP) Network Patch Cable – Black
Snagless booted design for network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications.
Connector 1 : (1) RJ-45 Male
Connector 2 : (1) RJ-45 Male
Product Description
For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colours to easily colour-coded your network installation. Each cable is individually labelled with the length for ease of use.
Product Features

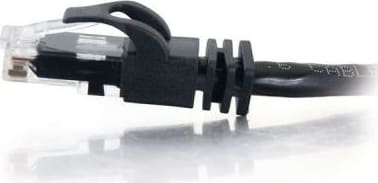

• Snagless booted design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires
• Available in 11 colours to colour-code a network
• Available in lengths up to 100m
Product Specifications
Colour : Black
Length : 0.50 Meter
Jacket Rating : Standard Non-Rated
UPC : 757120834052
Warranty : Lifetime
Vendor : C2G
Weight : 0.032 KG
Electrical Characteristics
• Conductor DC Resistance – 9.38Ω 100m (maximum)
• Impedance – 100Ω
• Capacitance – 5600pf/100m
• Propagation Delay – 545ns/100m (maximum)
• Delay Skew – 45ns/100m (maximum)
Physical Characteristics
• Wiring Scheme – T568B
• Standard: Category 6 TIA/EIA-568-B-2.1, draft 9

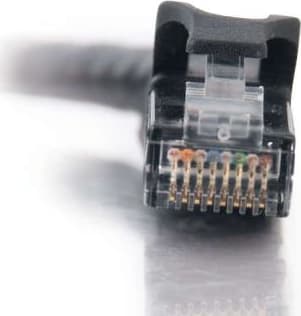

• Connector: 50 micron gold-plated RJ45
• Temperature Rating – 60°C
• Voltage Rating – 30V
• Approvals – RoHS Compliant
• Warranty – Lifetime
• Package Type – Polybag
Conductor (Qty. 4 twisted pair)
• Conductor Type – 24AWG (7/0.20), Stranded Bare Copper
• Insulation – H-D PE
• Diameter – 0.98 ± 0.05mm
• Colours – Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White
Connector Type (Qty. 2)
• Connector Type – 8P8C (RJ45)
• Gender – Male
• Connector Material – Polycarbonate
• Contact Material – Copper Alloy, Gold Plating – 50µm
• Hood Material – Moulded PVC
Overall Cable
• Jacket – PVC
• Minimum Average Thickness – 0.60mm
• Outer Diameter – 6.20 ± 0.30mm
Product Uses
• Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
• 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
• 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
• Voice; T1
