Manufacturer Overview

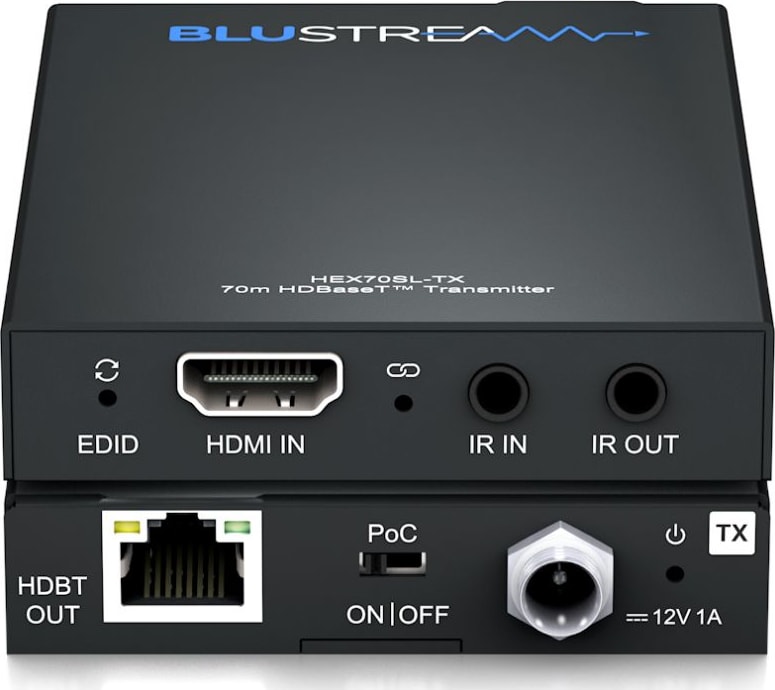

The HEX70SL-TX 4K HDBaseT™ transmitter offers market leading features in a slimline chassis.
The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.
• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Enhanced slimline chassis
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Bi-directional IR pass-through
• Supports bi-directional PoC (Power over Cable) to power, or be powered from, a compatible receiver point (power supply not included)
• Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility
• HDCP 2.2 compliant
Specifications:
• Video Input Connectors: 1 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• EDID: Pin hole button
• Power Supply: 12V/1A DC
• Dimensions: 106mm x 73mm x 16mm (LxWxH)
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature : -4°F to 140°F (-25°C to +70°C)
